C70 camera nozzle

Collect valuable intelligence
at low costs & minimum effort While cleaning

150-1000MM (6-40”)

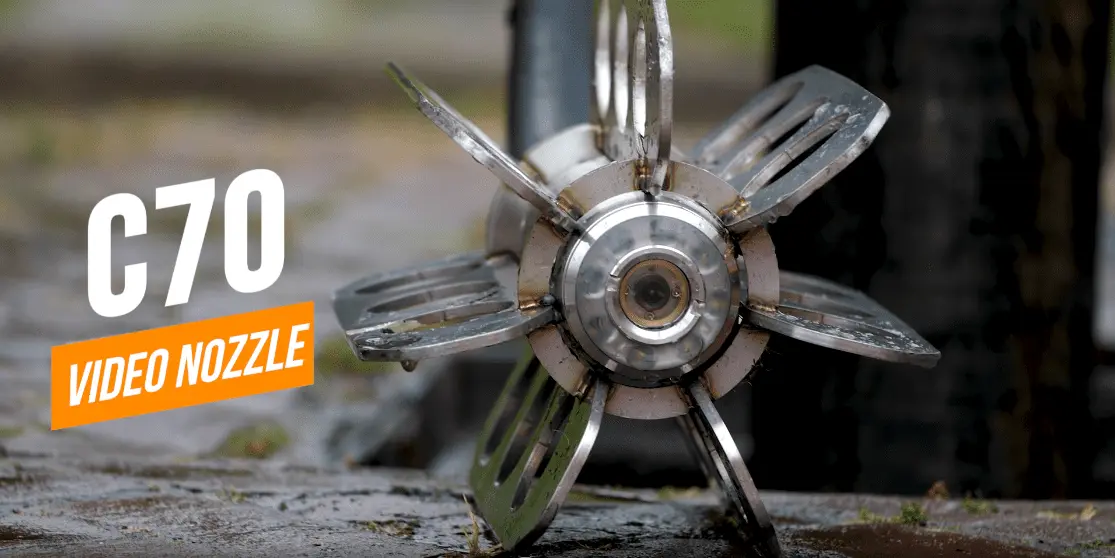

C70 Video Nozzle

The durable C70 Camera nozzle easily threads onto any jetting hose to help cleaning crews and asset managers record High Definition, auto upright, video at low cost during pipe cleaning operations

Once the pipe is cleaned, the video is downloaded with a single touch of a button and automatically uploaded to the Sewer Analytics web cloud, together with the date, time and GPS location of the cleanings.

"Collect HD decision ready data at low costs
and effort while cleaning pipelines"

The industry’s most advanced video nozzle

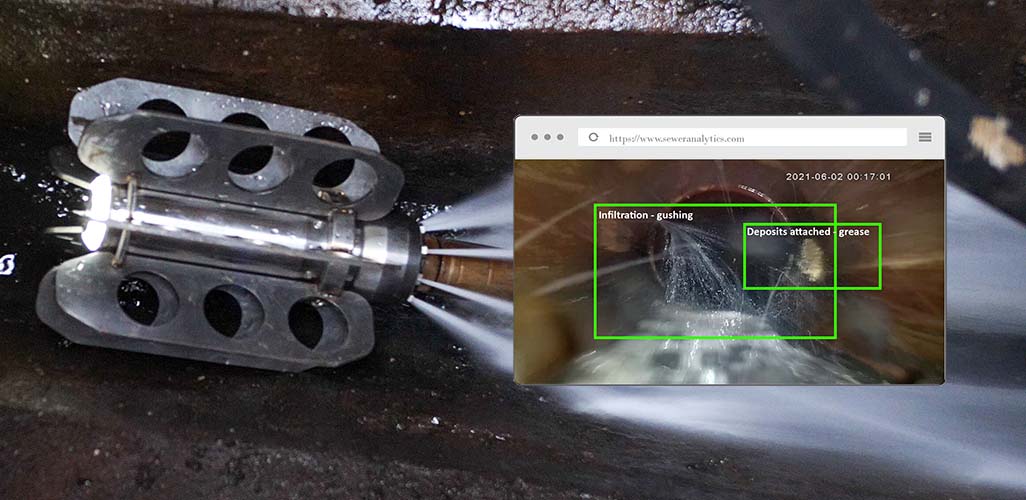

Collect HD decision ready data at low costs and effort while cleaning pipelines with the C70 cleaning nozzle! With reliable artificial intelligence software that automatically analyses your videos and does the defect coding, classification and prioritizing for you.

CLEANING CAPACITY

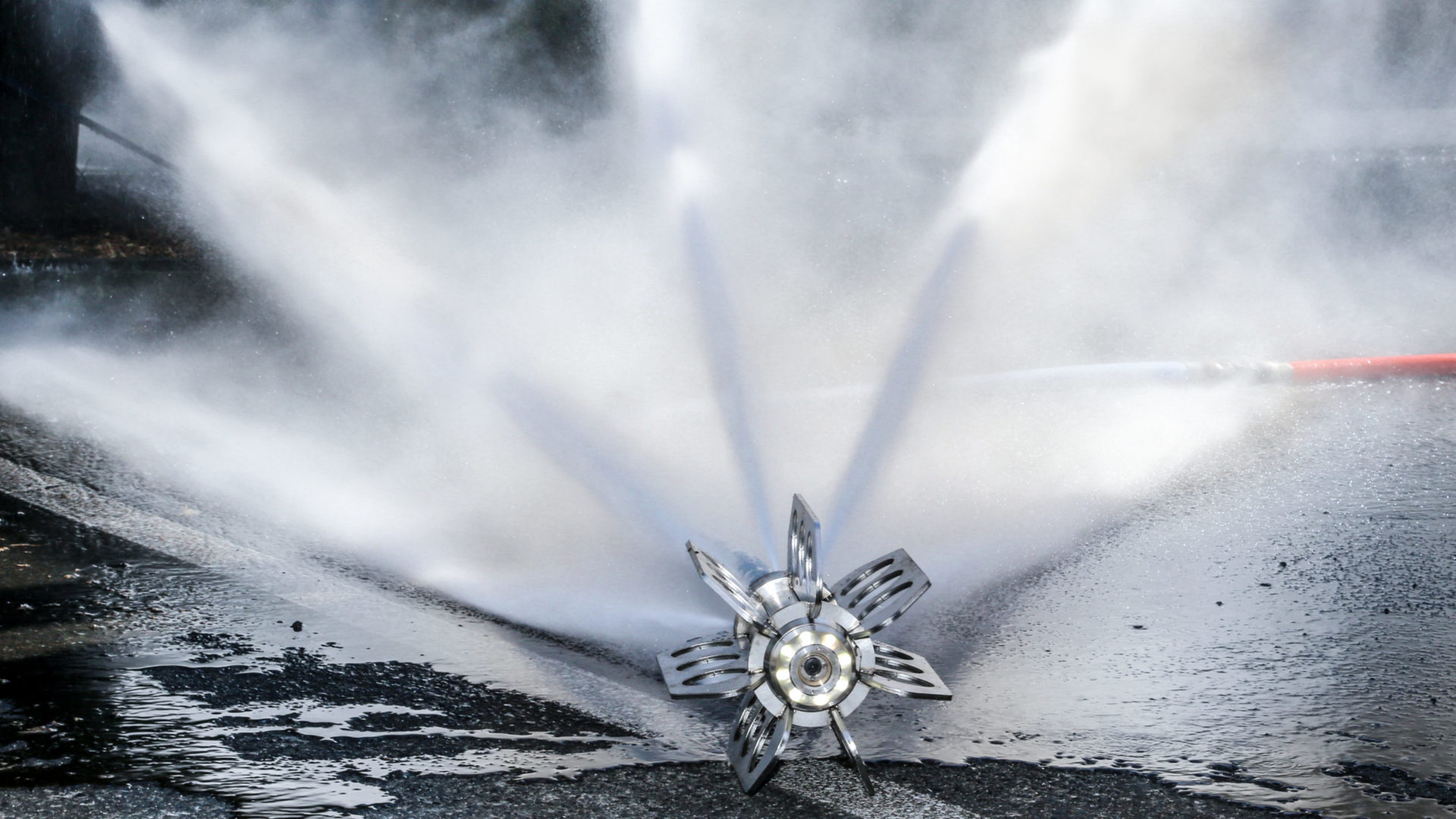

Great cleaning, forward thrust and debris transportation with exchangeable ceramic jets and different nozzles.

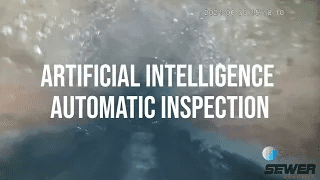

AI Software

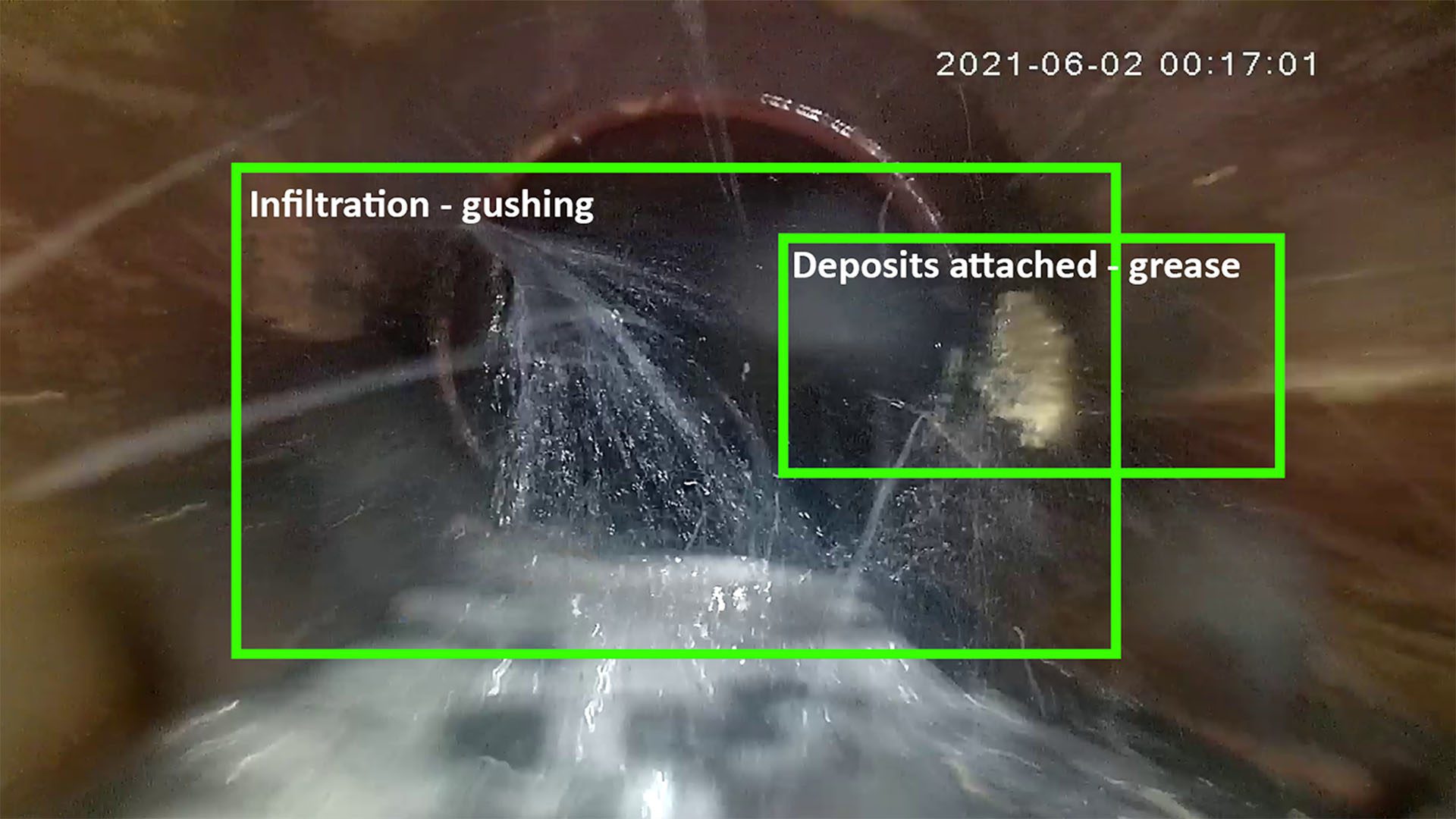

Reliable artificial intelligence software that automatically analyses videos, defect coding, classification and prioritizing.

Automatic Recording

A pressure switch lights up the Super bright LED’s and automatically starts the recording.

Stand-alone

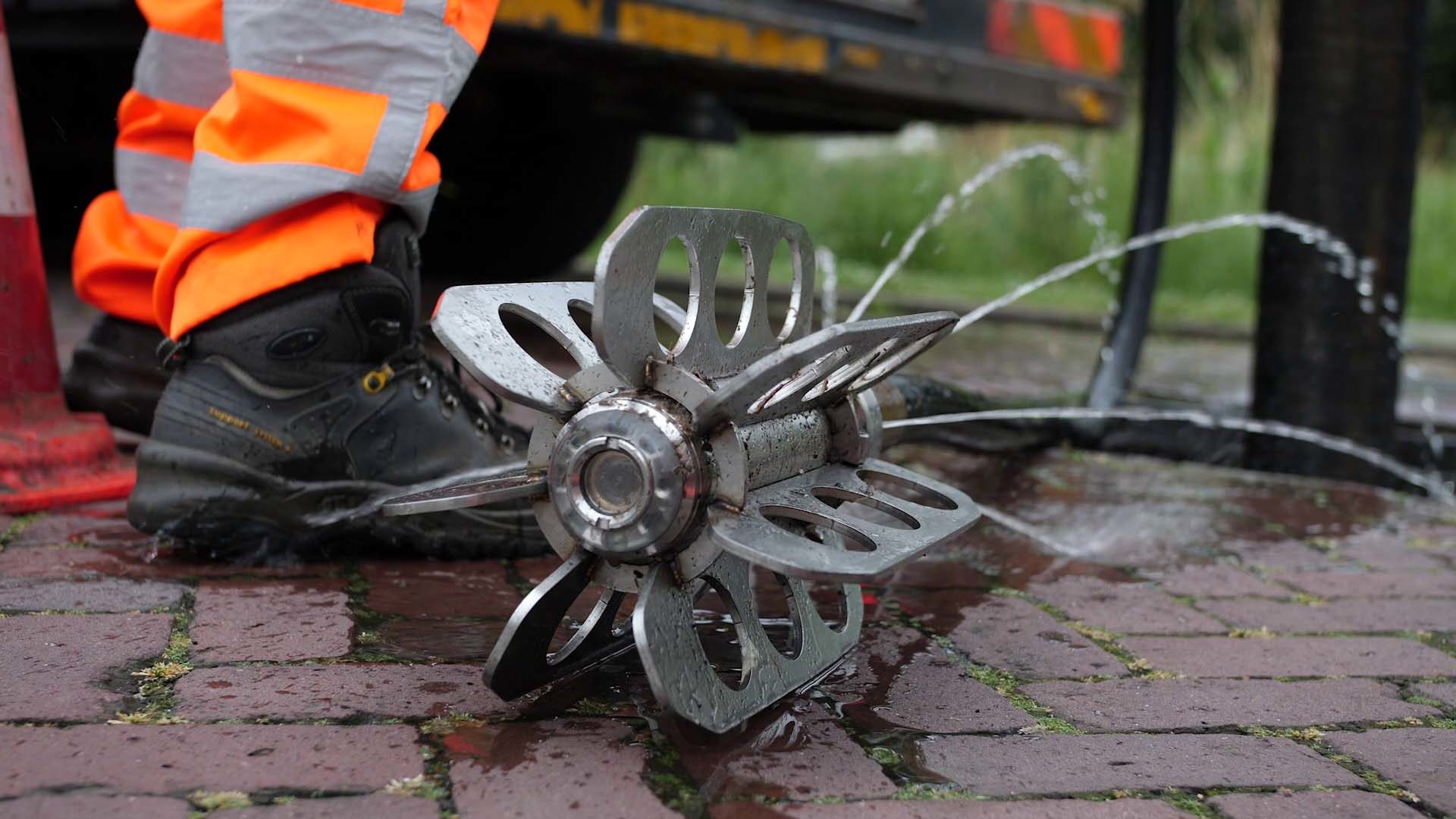

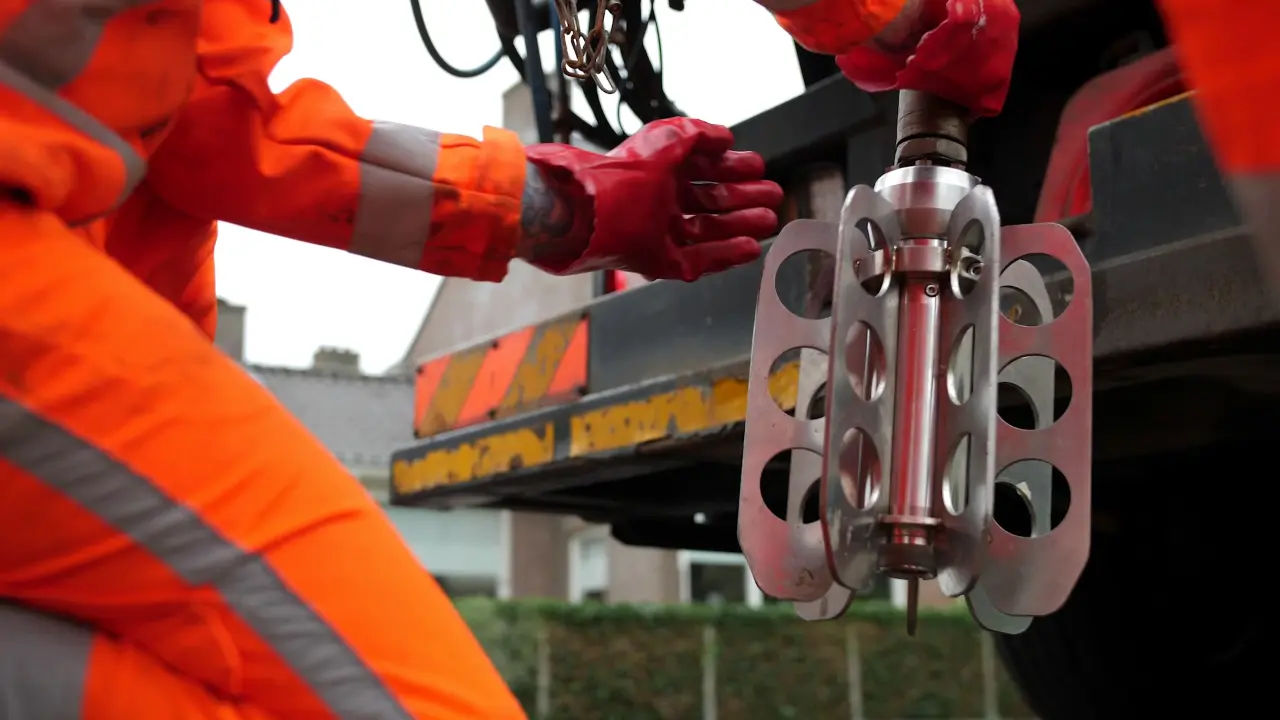

The stand-alone video nozzle kit easily threads onto the jetting hose and is compatible with any jetting truck.

10 Hours Runtime

The Lithium-Ion battery pack is charged in 3 hours and lasts as long as a good 10-hour working day.

Durable

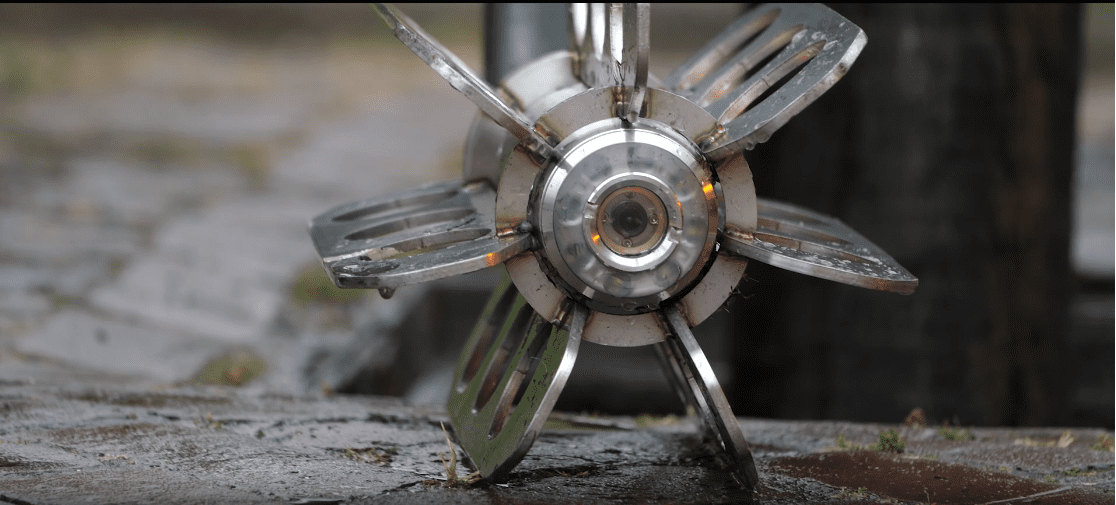

The pressurized, stainless-steel, housing has no external buttons and is made to withstand a serious beating.

Superior video

The auto-upright, High-Definition camera is protected by stacked Sapphire lenses and records always from a perfect horizontal position.

“login to Sewer Analytics to access cleanings

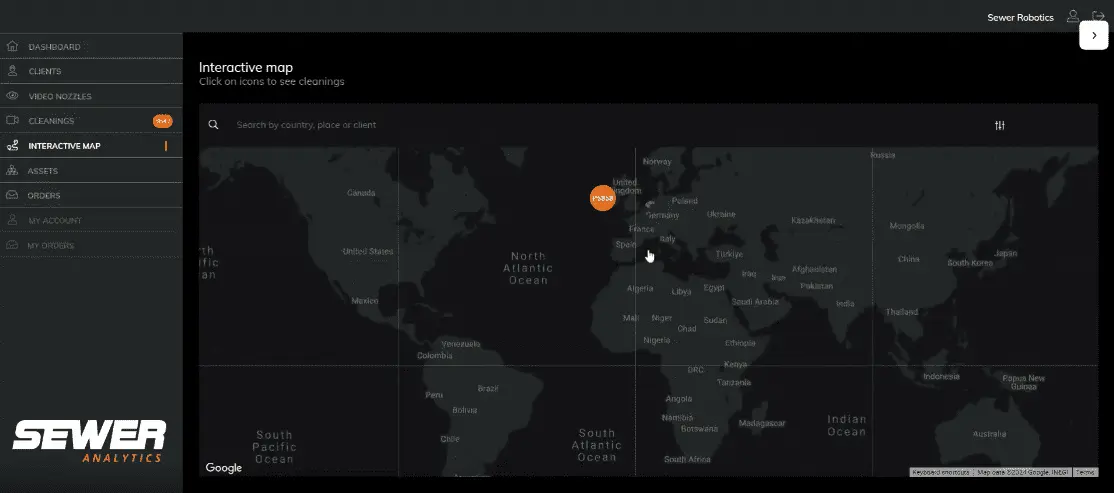

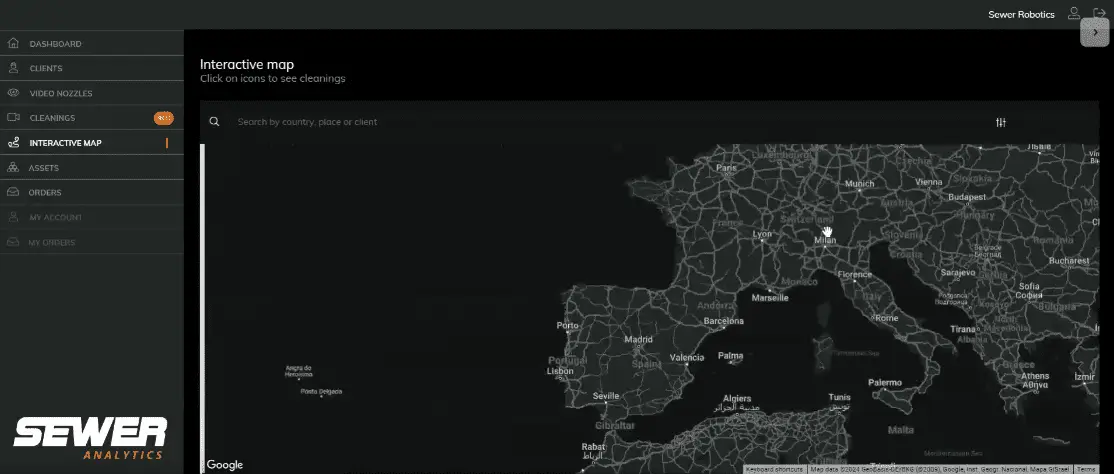

Interactive map
Add Observations
ADD HEADER INFO & PRIORITIZE
Previous
Next

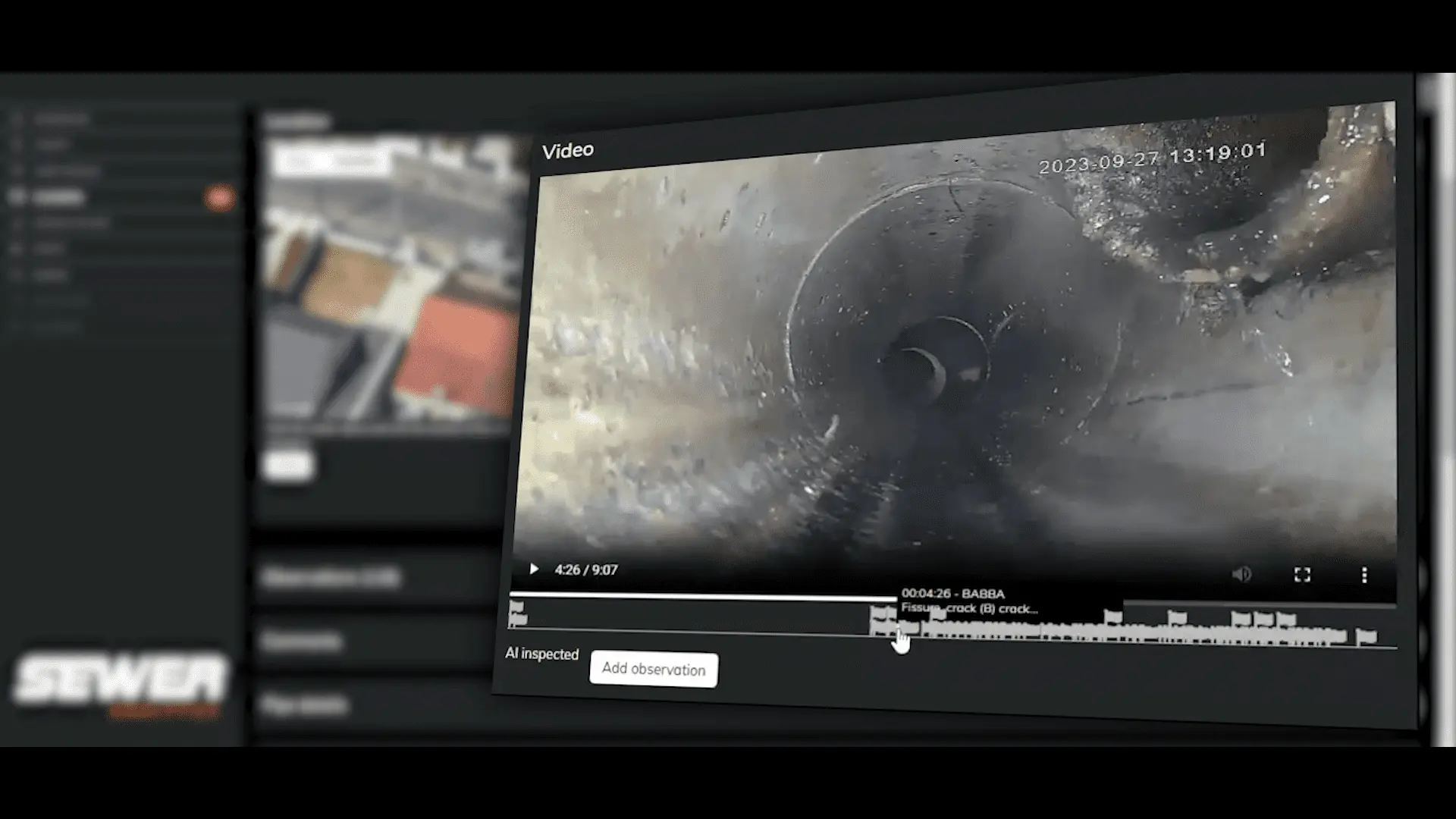

Sewer Anaytics

+ Review videos
+ add observations
+ add header info
+ prioritize cleanings
+ share cleaning info


C70_105

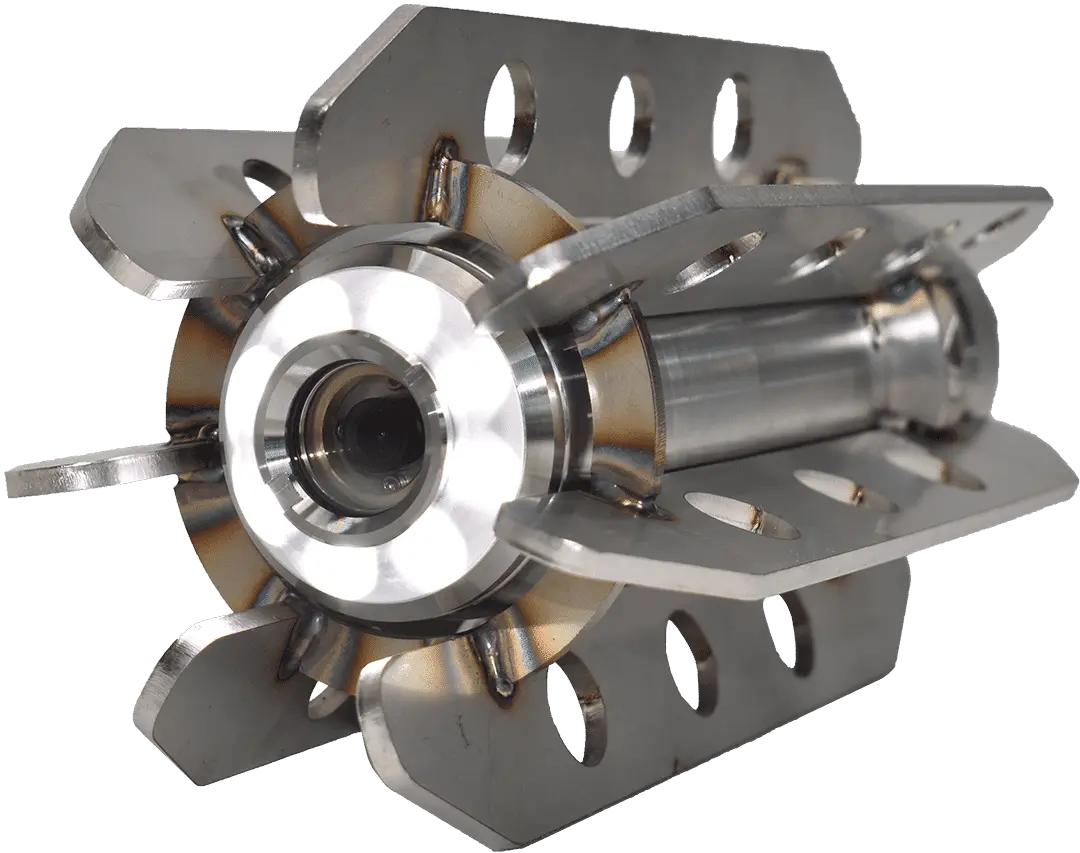

Stainless skid for 150mm (6") pipe - 120mm (5") outside diameter

C70_200

Stainless skid for 200 – 375 mm pipe (8 – 15”) – 160mm (6") outside diameter

C70_300

Stainless skid for 300 – 600mm (12-24") pipes – 235mm (9") outside diameter

C70_600L

Floor cleaner skid for 600 - 1000mm pipes (12-40") Includes auxiliary lighting, jets, pressure switch and swivel

Specifications

Scope of use
Pressure
Flow
Hose connection
Camera
Video output
Internal storage
Cleaning



Housing
Protection lenses
Lighting
Battery


Weight
Dimensions
Tablet

: 150 – 1000mm (6-40”)
: 125 – 275bar (2000-4000psi)
: 80 – 650 LPM (21-170GPM)
: ¾, 1 and 1¼” BSP & NPT
: Self leveling, High-Definition, CMOS
: MP4, 1980×1080 or 1280×720
: 32 Gb
: 8, replaceable, 20-degree angled jets with ceramic orifices (standard)
: Other nozzles (optional)
: Durable, Stainless-steel
: 2 Sapphire lenses stacked
: 7, Powerful, Superbright, LED’s
: Lithium-Ion battery pack
: 8+ hours battery runtime
: 3 hours charge time
: 6,2kg (13,7 Lbs.) (Without skid)
: D90x295mm (D3.5×11.6”) (without skid)
: 8”, Rugged, IP67
: Windows® operated
: GPS location

Scope of use

: 150 – 1000mm  (6-40”)

Pressure

: 125 – 275bar (2000-4000psi)

: Up to 3000bar (43,500psi) ¹

Flow

: 80 – 650 LPM (21-170GPM)

Hose connection

: ¾, 1 and 1¼” BSP & NPT

Video

: Self leveling, High-Definition, MP4

Camera

: CMOS, 1980×1080 or 1280×720

Internal storage

: 32 Gb

Cleaning

: 8x 55-degree & 4x 20-degree
jets with Ceramic orifices

: Other nozzles (optional)

Housing

: Durable, Stainless-steel

Protection lenses

: 2 Sapphire lenses, stacked

Lighting

: 7 intensity adjustable
superbright LED’s

Battery

: Lithium-Ion battery pack

: 10+ hours battery runtime

: 3 hours charge time

Weight

: 6,2kg (13,7 Lbs) ²

Dimensions

: D90x295mm (D3.5×11.6”) ²

Tablet

: 8”, Rugged, IP67
: Windows® operated
: GPS receiver

Features

  • Pressure activated automatic lighting
  • Pressure activated automatic recording
  • Wireless operation & video downloading
  • Automatic cloud uploading(when connected to the internet)
  • Great cleaning, thrust and debris removal
  • Log-in protected access to the Sewer
  • Analytics web cloud from any device
  • Accessories

  • Jet inserts
  • Hose adapters and swivels
  • Nozzles for different cleaning applications
  • Large diameter skid with auxiliary lighting
  • Customized software integrations
  • Request online demonstration

    Time UTC+1:

    for any truck

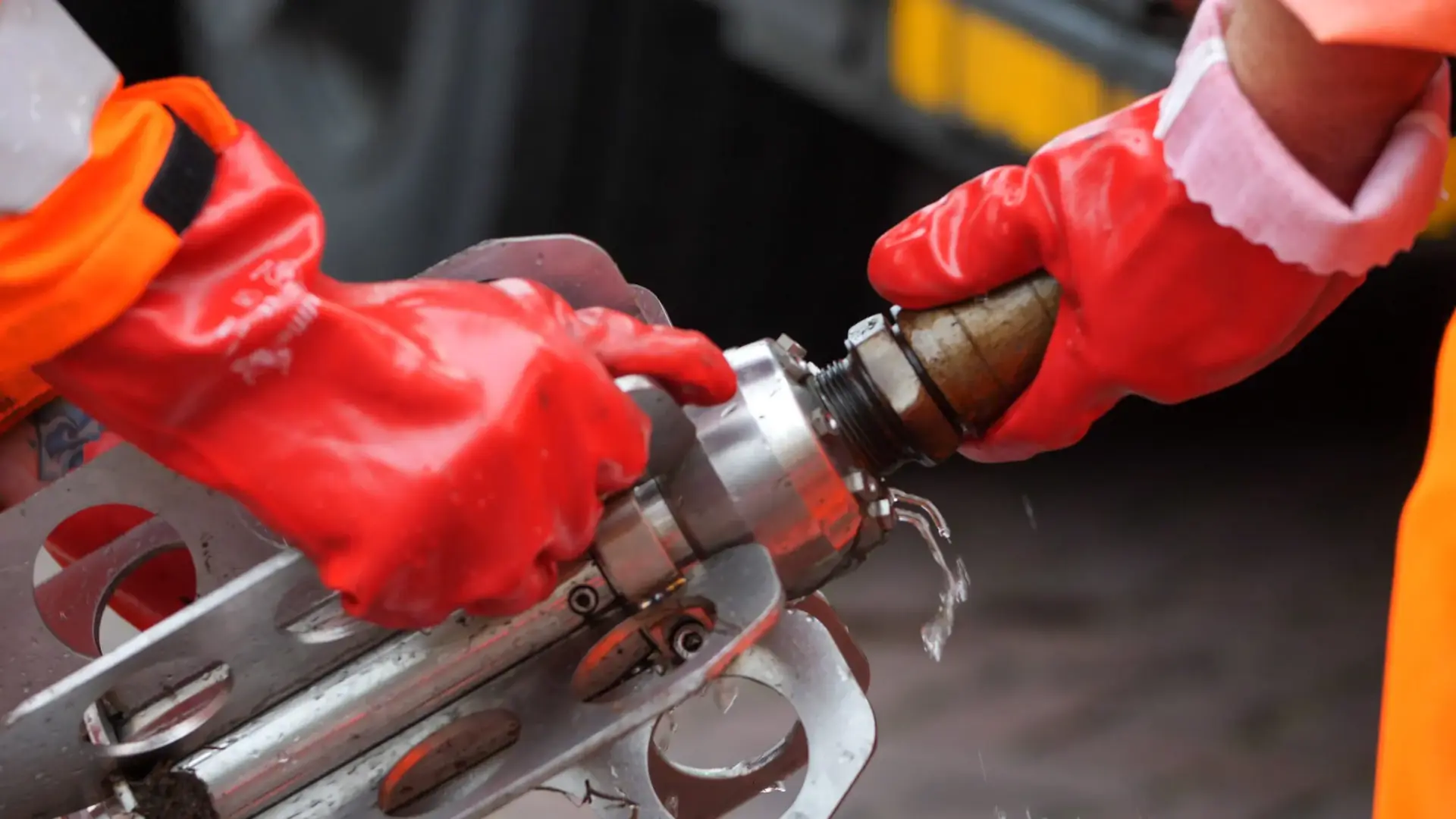

    The stand-alone C70 camera nozzle threads onto any jetting hose.

    workflow integration

    Once the pipe is cleaned, the video is downloaded via Wi-Fi and automatically uploaded to the Sewer Analytics web cloud, together with the date, time and GPS location of the cleanings.

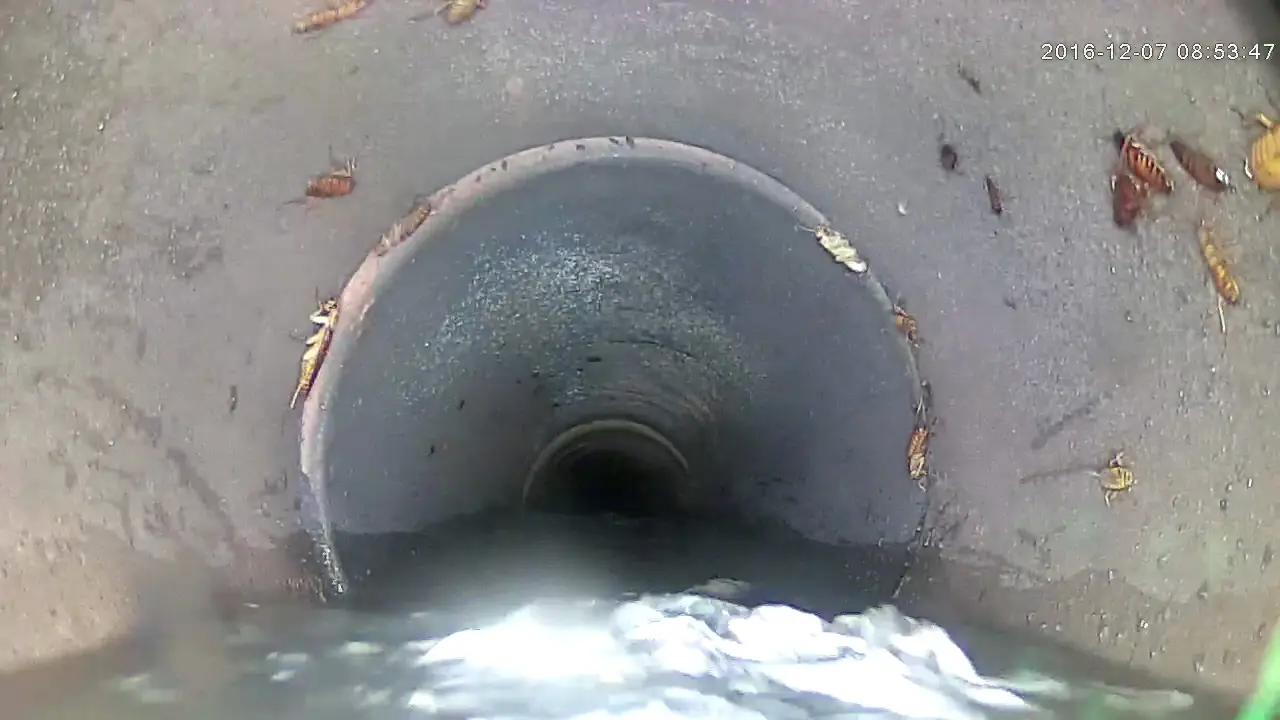

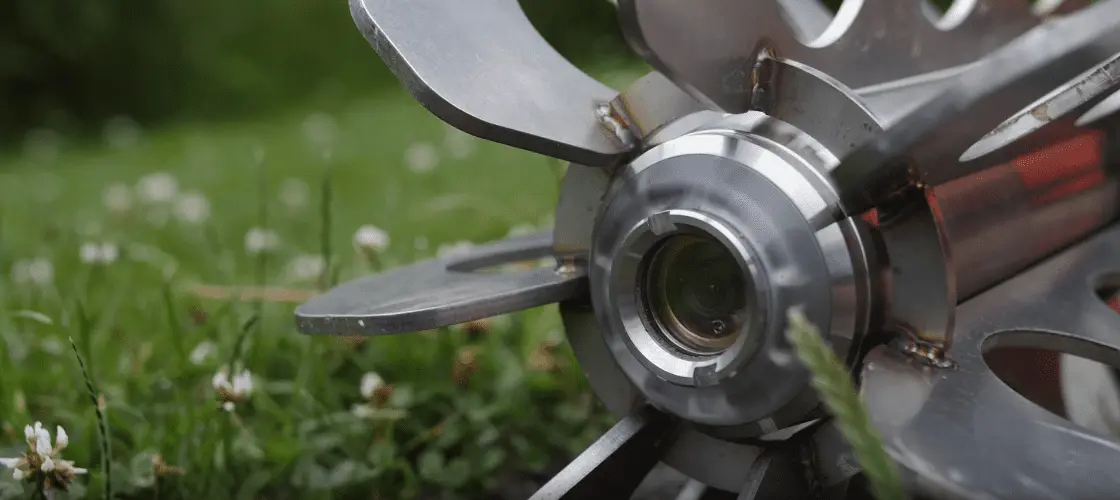

    Superior video

    The auto-upright, HighDefinition camera is protected by stacked Sapphire lenses and records always from a perfect horizontal position.

    Perfectly horizontal video

    Mechanical self-leveling keeps the camera at a perfect horizontal position without eliminating pixels

    Durable

    The pressurized, stainless-steel, housing has no external buttons and is made to withstand a serious beating.

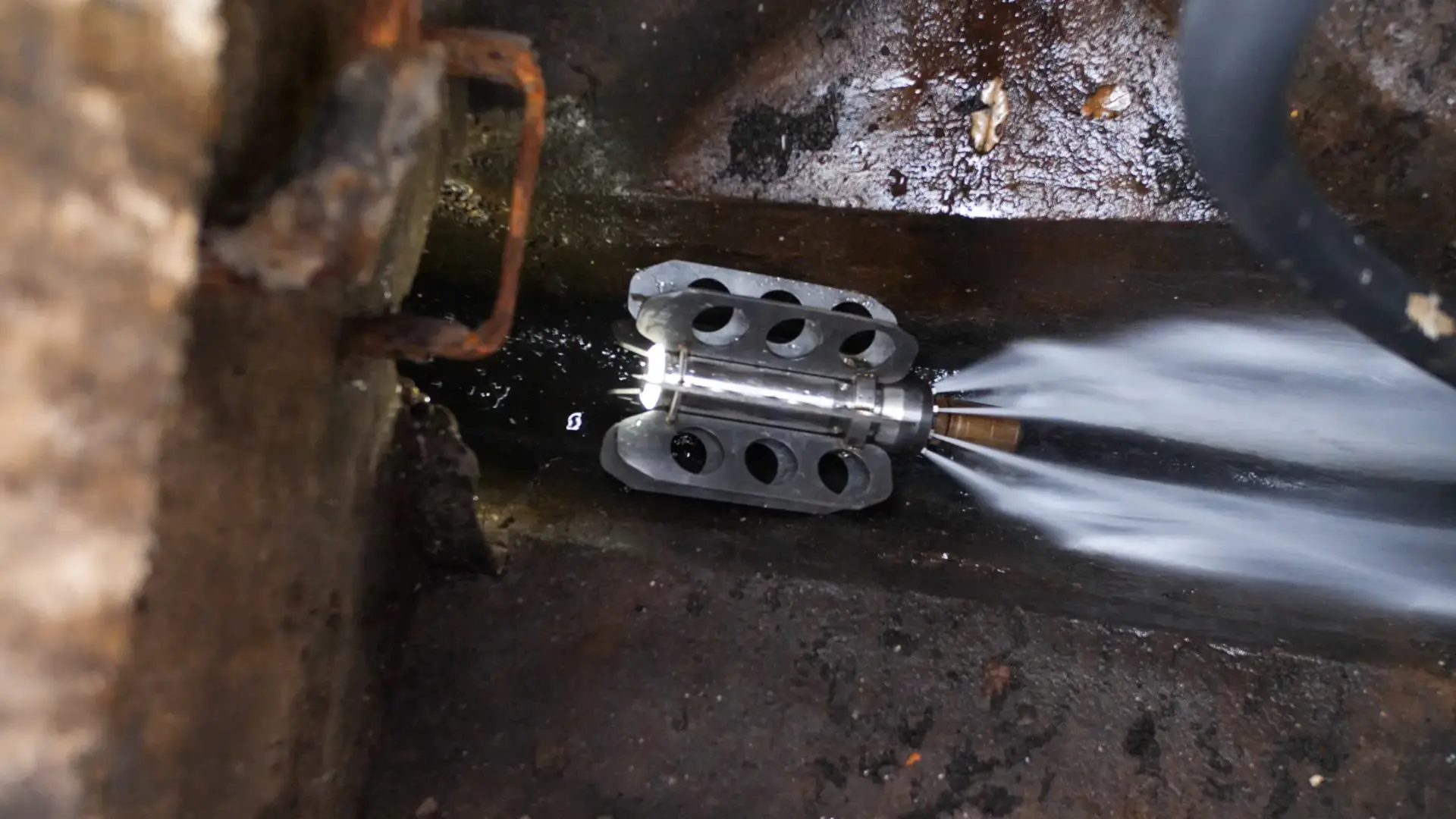

    Automatic recording

    A pressure switch lights up the Super bright LED’s and automatically starts the recording.

    great CLEANING CAPACITY

    Great cleaning and debris transportation with 8x 55° & 4x 20° exchangeable Ceramic jets. (Other nozzle configurations available)

    10 hours runtime

    The Lithium-Ion battery pack is charged in 3 hours and lasts as long as a good 10 hour working day.
