System configurations

Sewer Robotics rehabilitation robots can be used as a mobile configuration or installed in a van, trailer or box truck as stand-alone system with high pressure unit and water supply.

Mobile Configuration

About

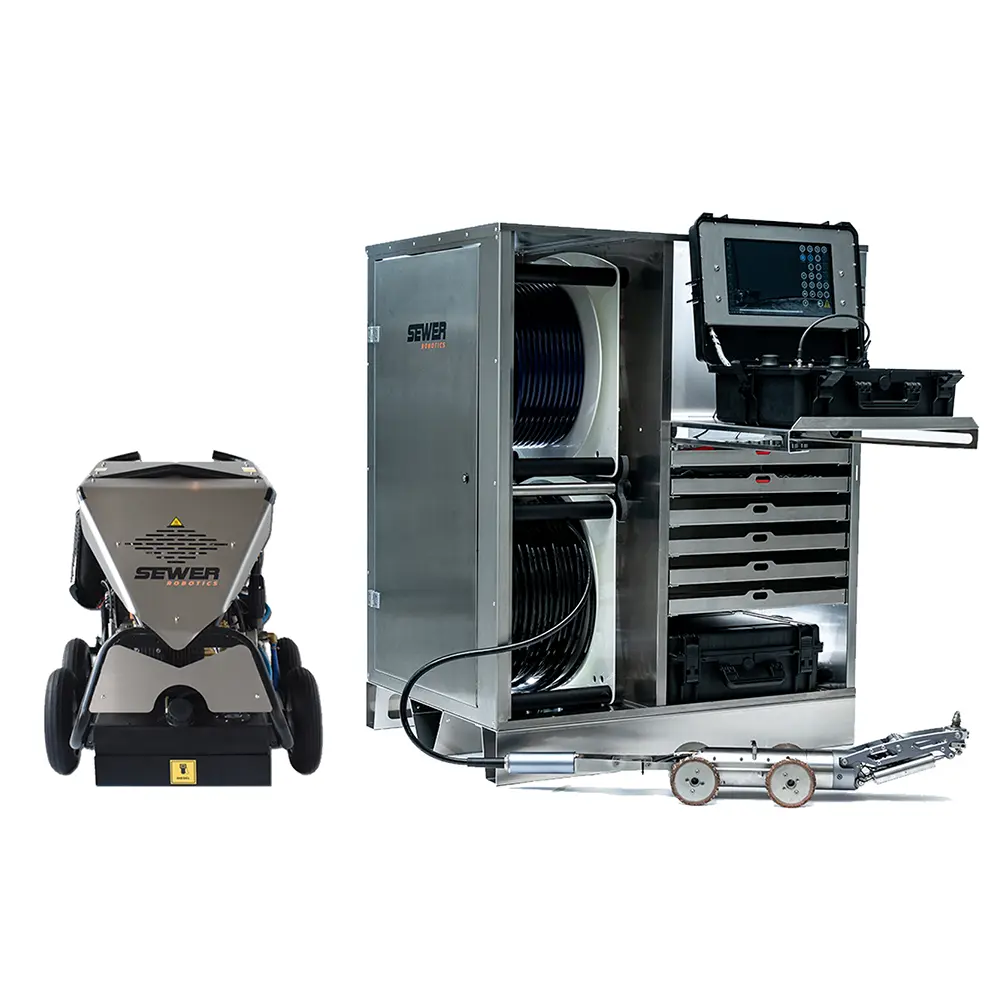

Mobile Configuration

This economic mobile system configuration is compatible with all SEWER ROBOTICS CRAWLERS and job-specific modules for UHP water jet cutting, lateral reinstatement and CCTV inspection inside 150 – 1000mm (6-40”) pipelines.

The cable- and hose reels have a small footprint for easement work or installation into any type of vehicle.

Small investment, Great Performance

PRO'S

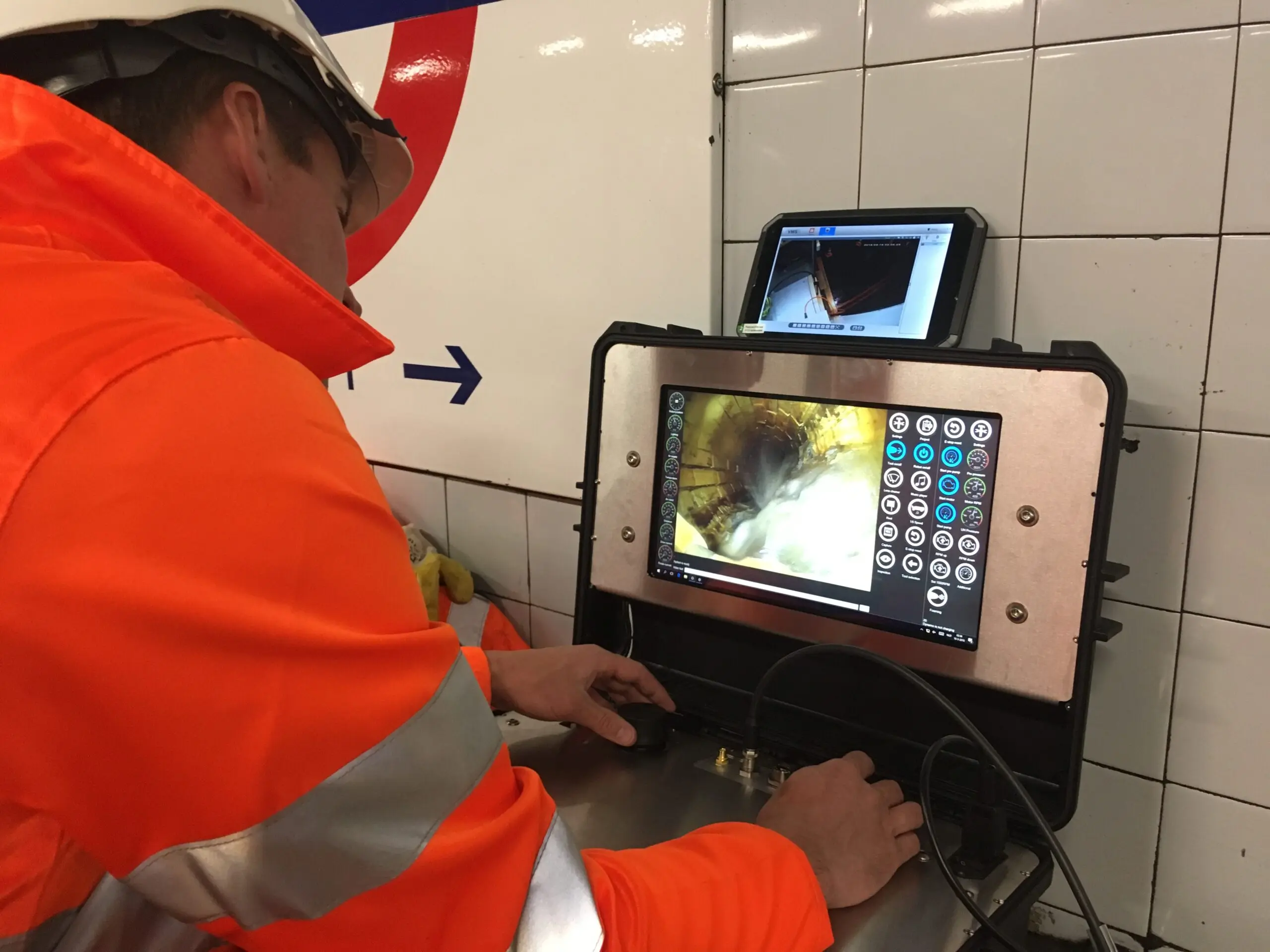

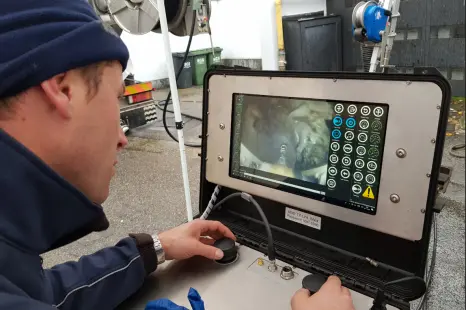

CP3DP Suitcase control unit

PC                : 15.6” (1.920 x 1.080) Touch Screen Panel
Joysticks       : Dual, 6-axis, responsive joysticks
Interfaces     : Robot power supply, communication interface & video interface
Camera        : Photo and video capturing with text overlay
Power          : 100-230V, 50-60Hz
Dimensions  : 540x410x225mm (21.3×16.1×8.7”) – closed
Weight        : 18kg (40lbs)

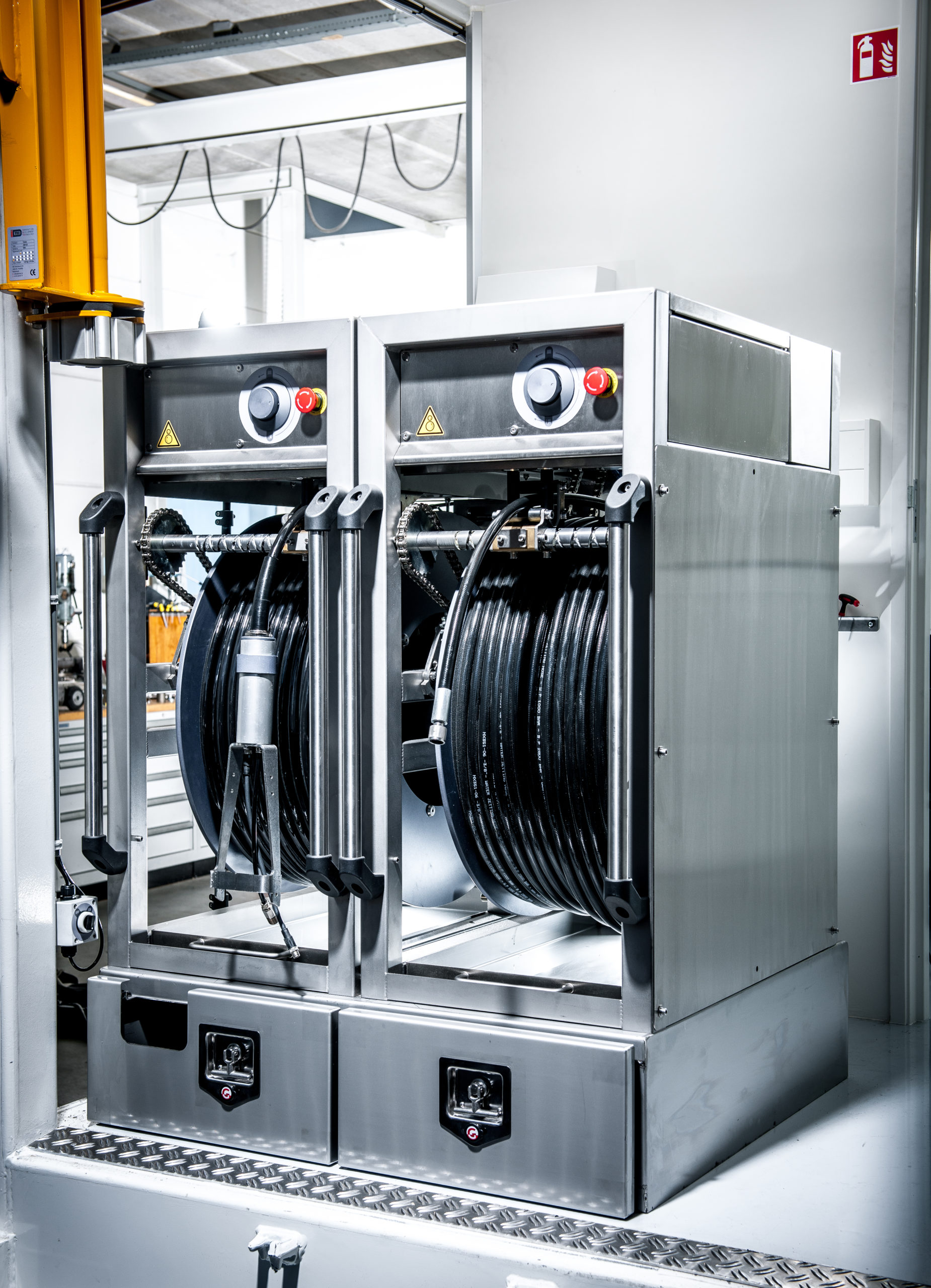

HH100 Cable & Hose reels

Max. lengths         : 120M (400ft)
Max. pressure       : 1500bar (21,750psi)
Dimensions           : 620x440x620mm (24.4×17.3×24.4”) Stackeable
Weight                  : 80kg (175lbs)
Compatible Robots : R125, R160, R250, R600, TWK300E

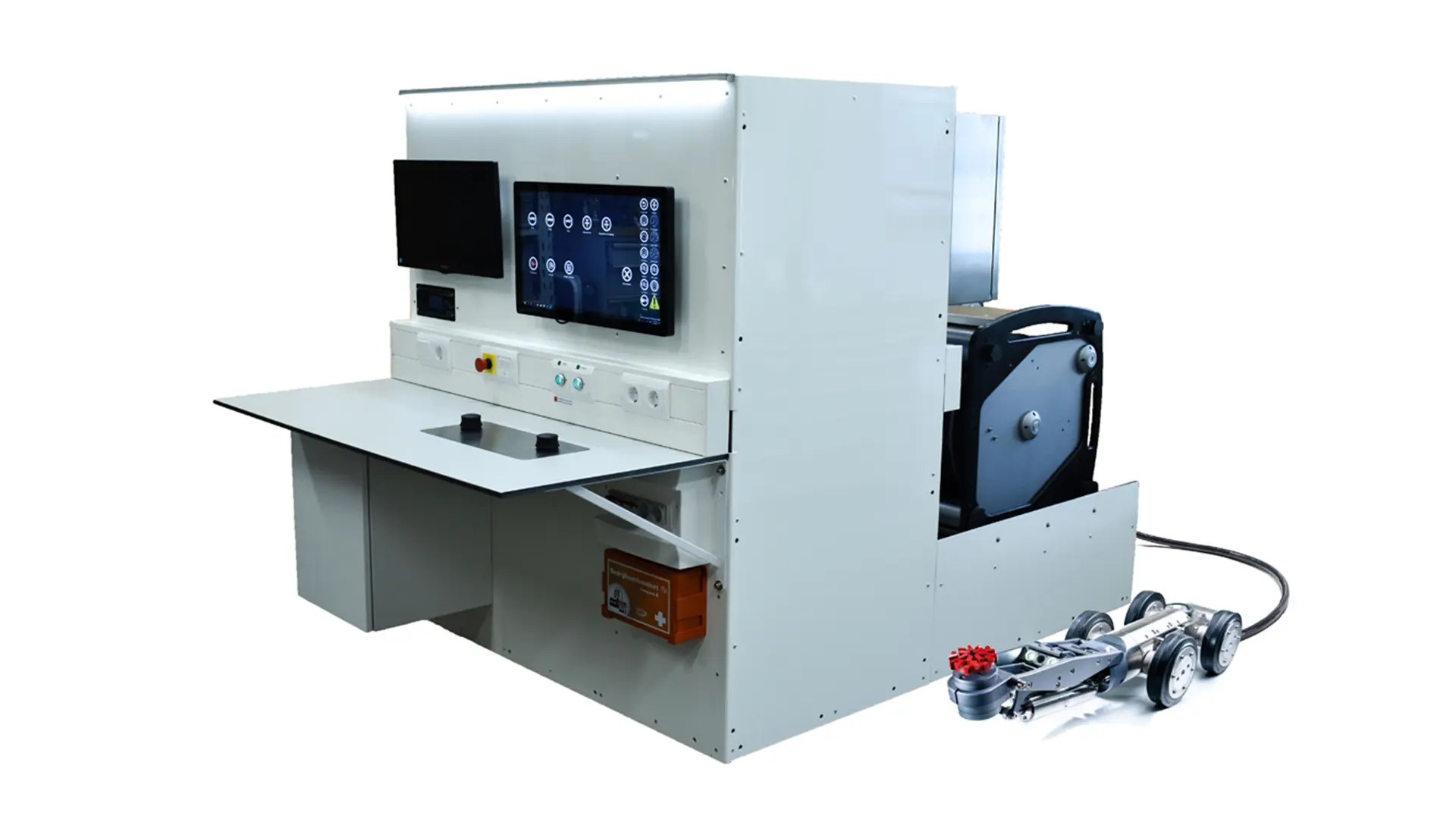

Van & Trailer skid

About

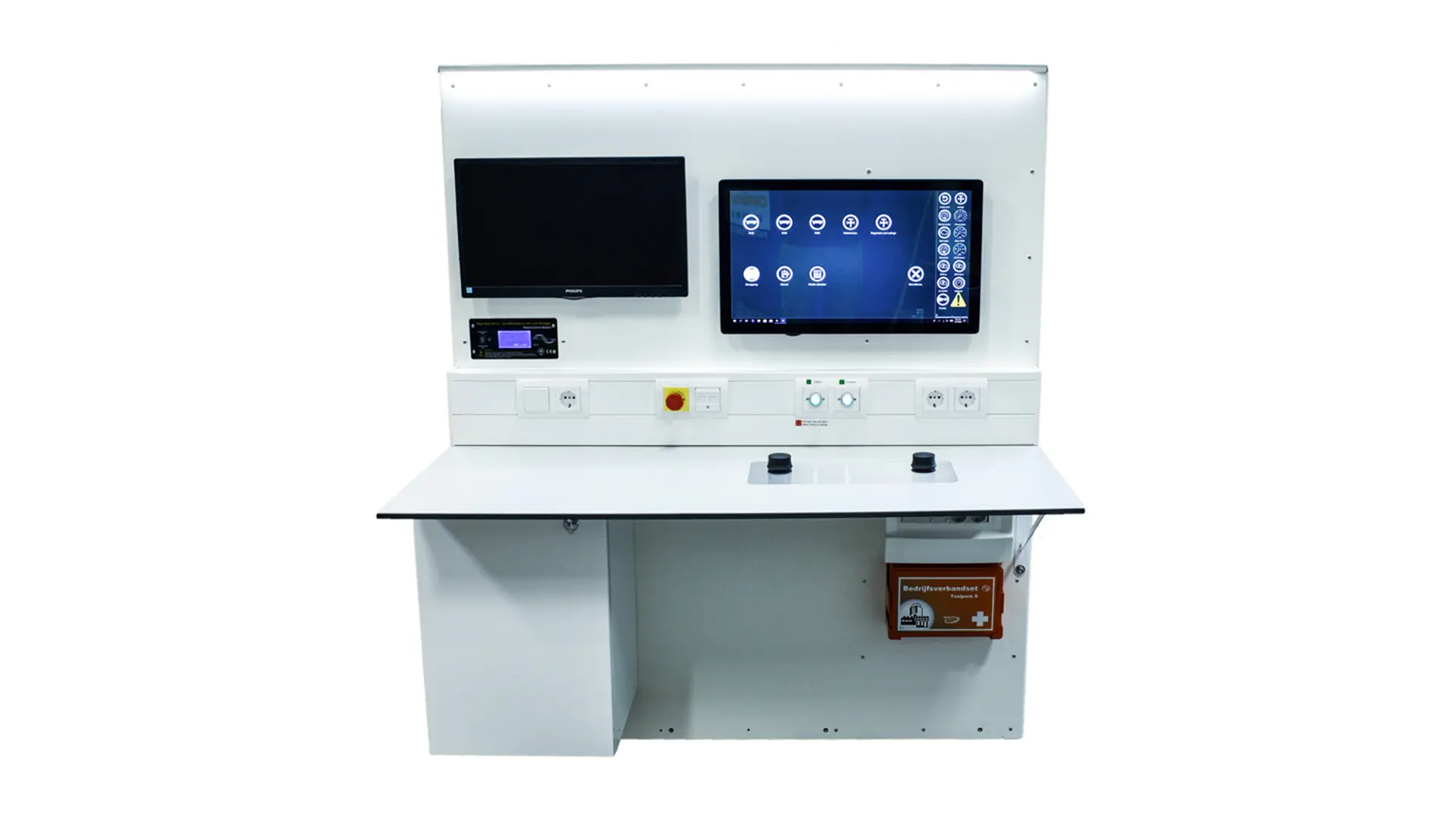

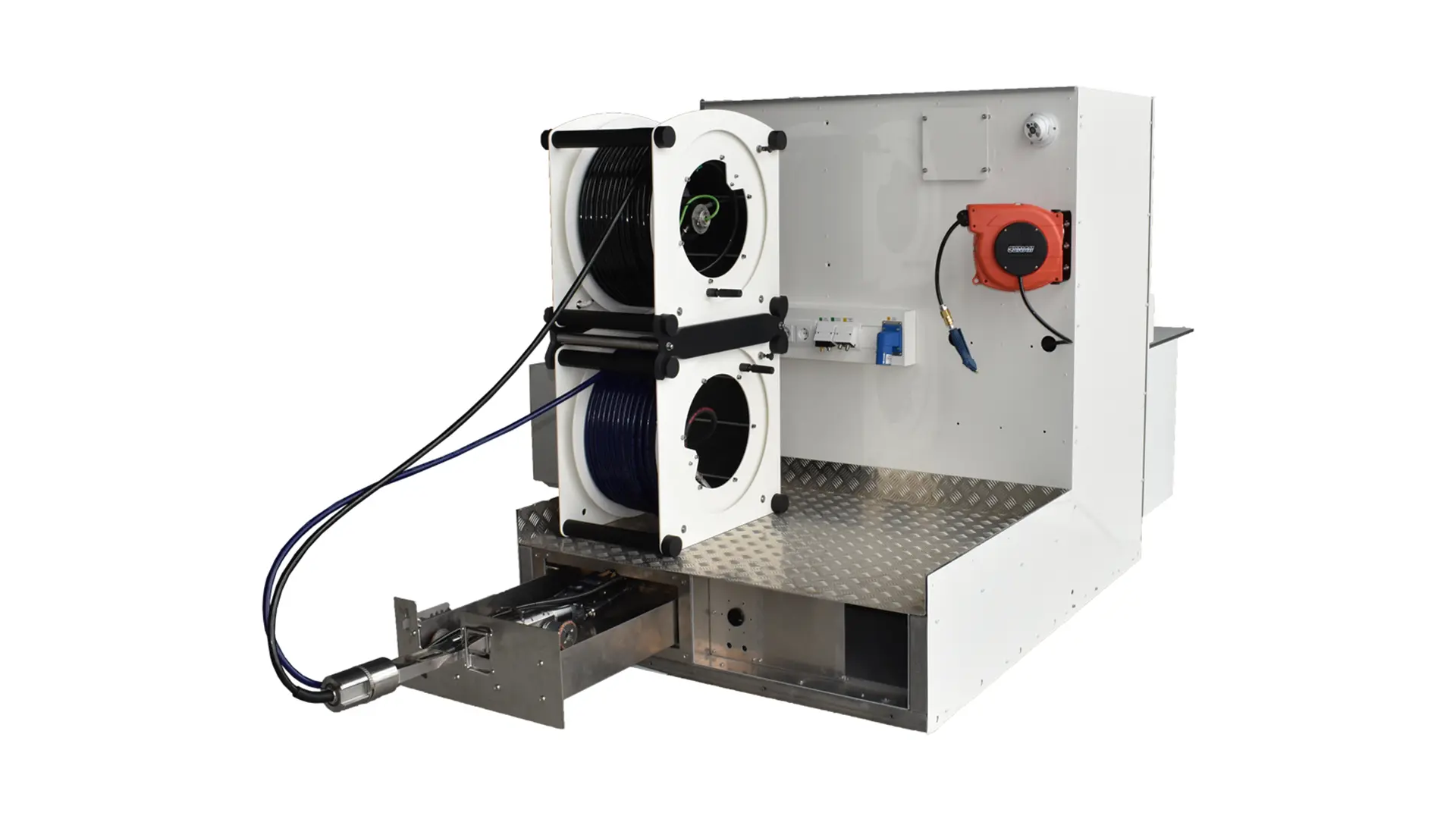

Van & Trailer Skid

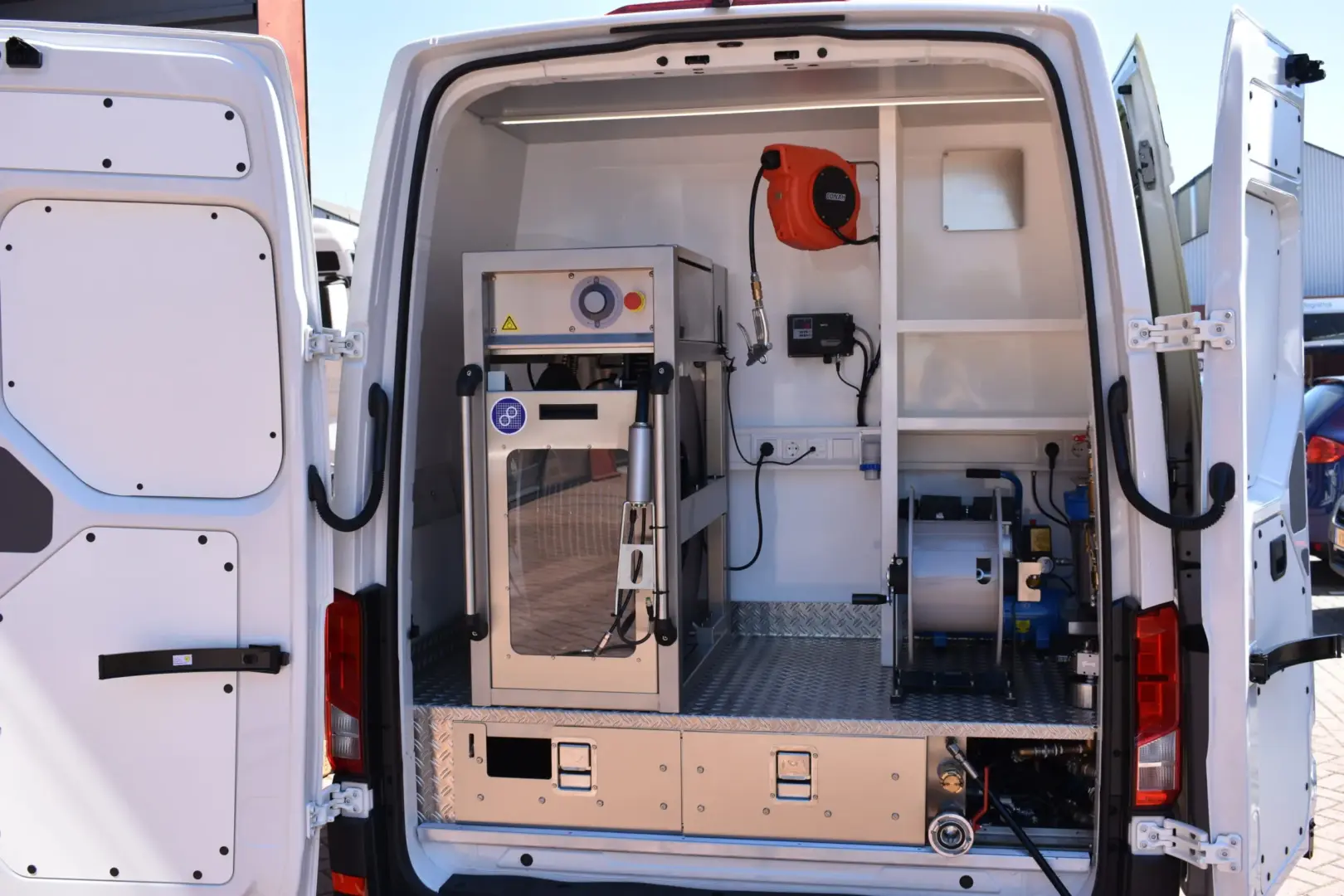

This plug-and-play skid offers a convenient and affordable solution for integrating SEWER ROBOTICS’ lateral reinstatement and precision jet cutting robot systems in vans, trailers and other vehicles.

With a 1000L (264gal) water tank, 3000W power inverter, operator desk with flush mounted joysticks and 27” touch screen PC, rear view camera, and robot storage drawer, it only needs to be anchored inside the vehicle and connected to the vehicle’s batteries.

"From our shop, straight to your job”

PRO'S

Specifications

Compatible reels      : HH100 – 120m (400’)
                              : MH200 – 250m (820’)
Control unit             : Flush mounted CP3D joystick panel & 27” Touchscreen PC
Compatible vehicles : Vans, trailers and trucks
Water supply           : 1000L (264gal) or more
Power supply           : 3000watt 100-230V, 50-60Hz inverter (12-24VDC)
Dimensions              : D2400xW 1400xH1620mm (94.5×55.2×64”)
Weight                     : 340kg (750lbs) (empty tank)
Vehicle GVWR           : 3500kg (7,716lbs) with empty tank – or heavier
Compatible Robots    : R125, R160, R250, R600, TWK300E

Features

  • CCTV Vicinity camera system
  • Robot storage drawer
  • Electric pre-pressure pump

Box Integration

About

Box Integration

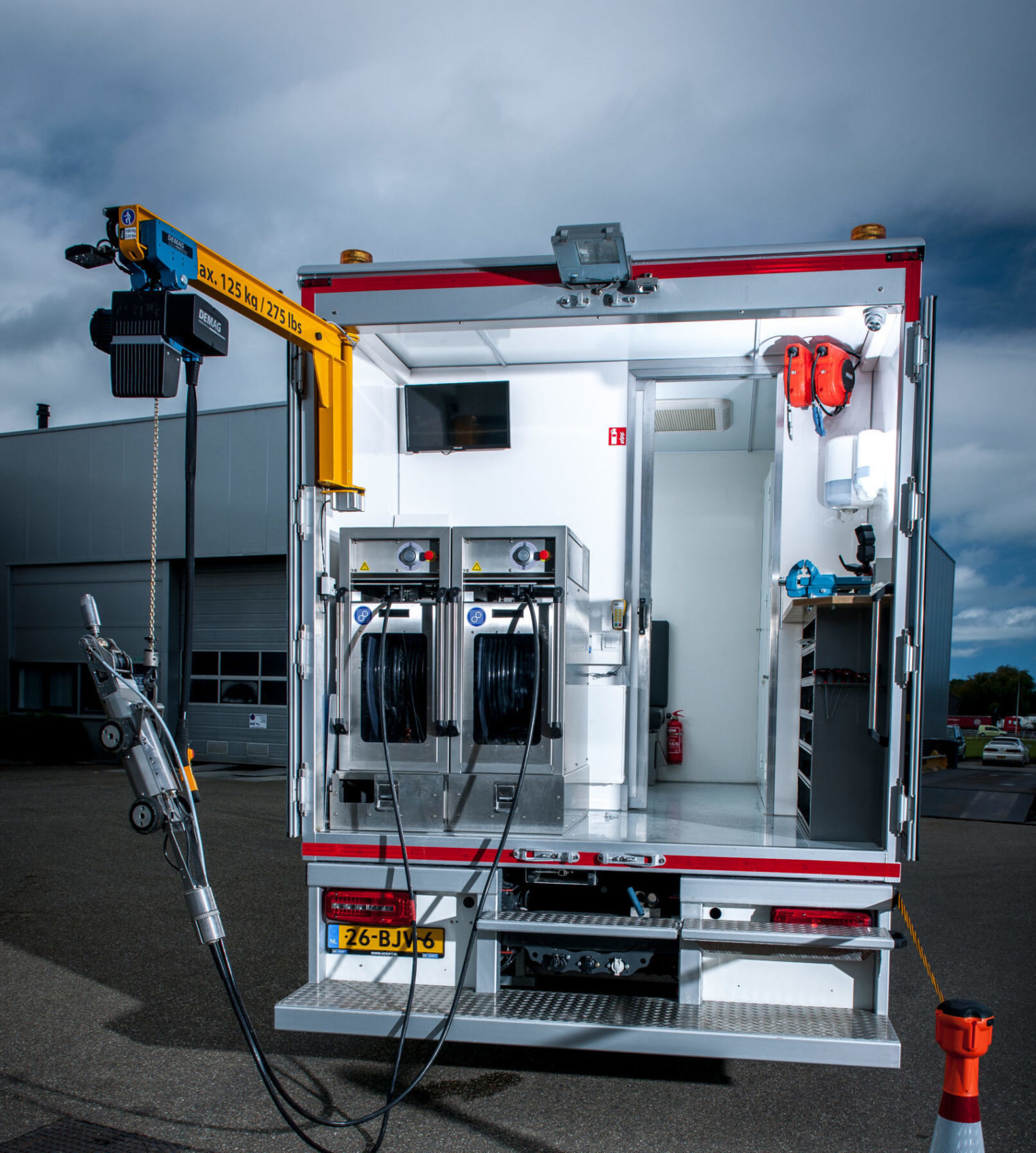

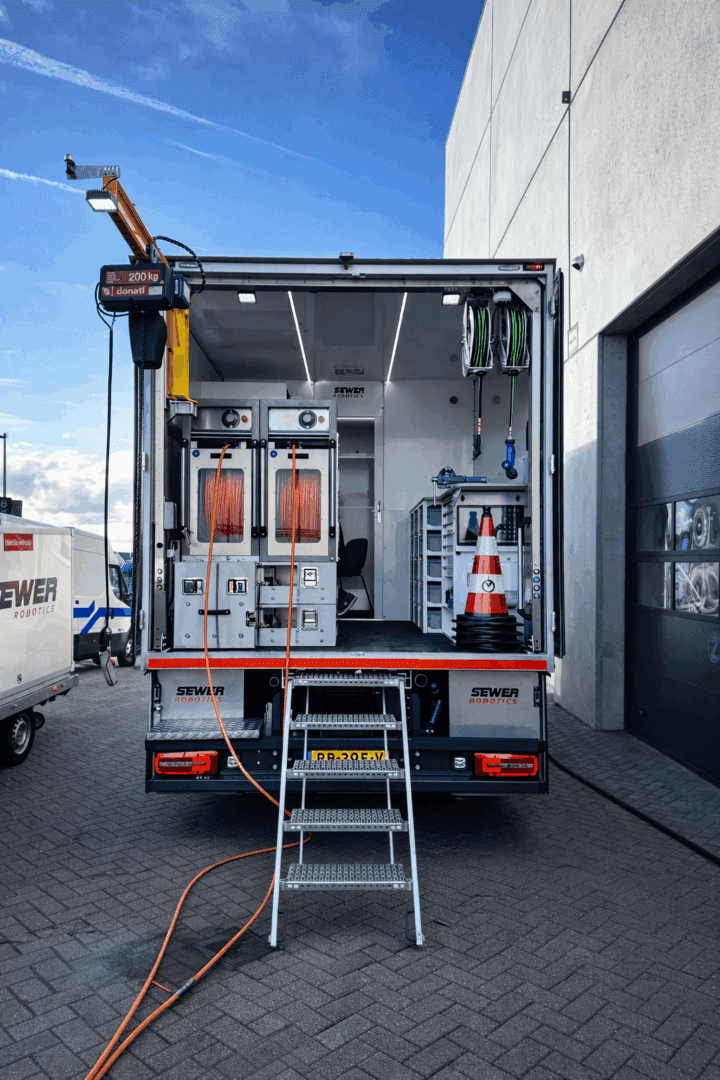

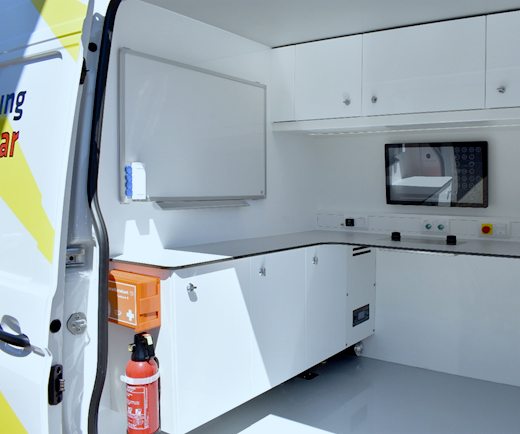

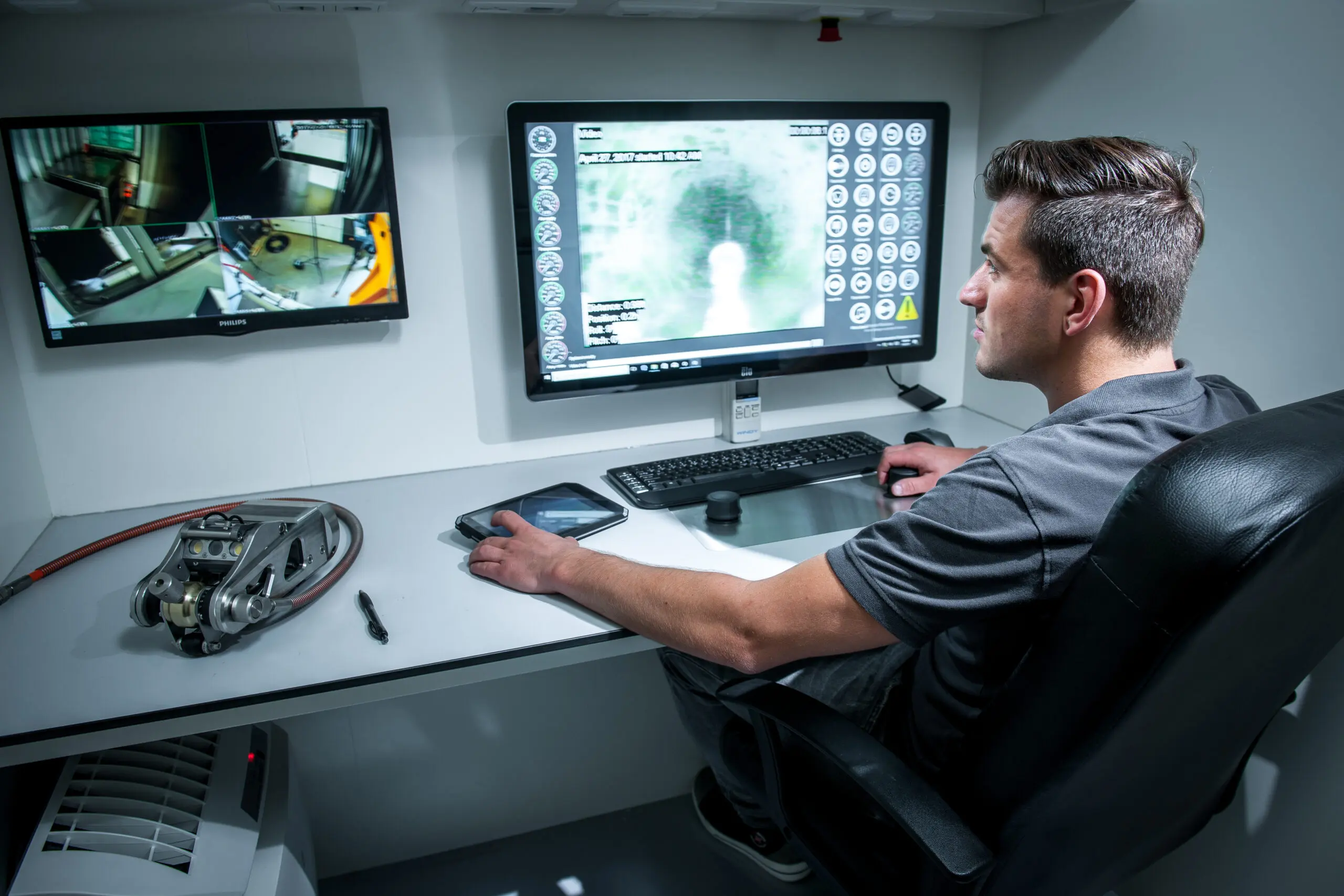

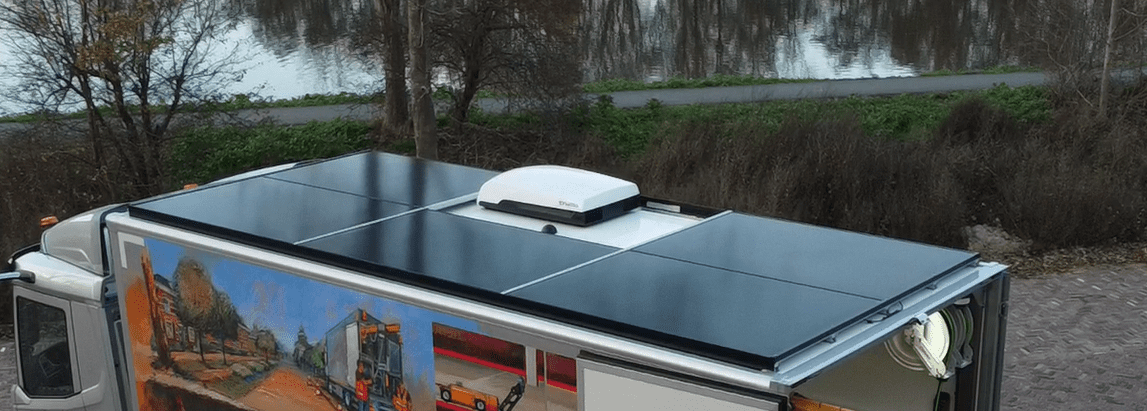

Sewer Robotics box installations have everything exactly at the right place. Reels, robot storage and a workbench in the equipment compartment. Convenient touch screen controls and customizable joysticks, cabinetry with sufficient storage in a laboratory alike control studio and a powerful high-pressure unit with water- and power supplies in the engine room.

“When you spend just as much time on the job as you do at home,
you need equipment that looks and feels good ”

1

BEACONS OR STROBE LIGHTS

2

WORK LIGHT

3

REAR VIEW CAMERA

4

RETRACTABLE WATER &
AIR REELS WITH CLEANING GUNS

5

JIB CRANE WITH ELECTRIC HOIST

6

LED lighting

7

ADDITIONAL MONITOR

8

HYBRID CABLE REEL

9

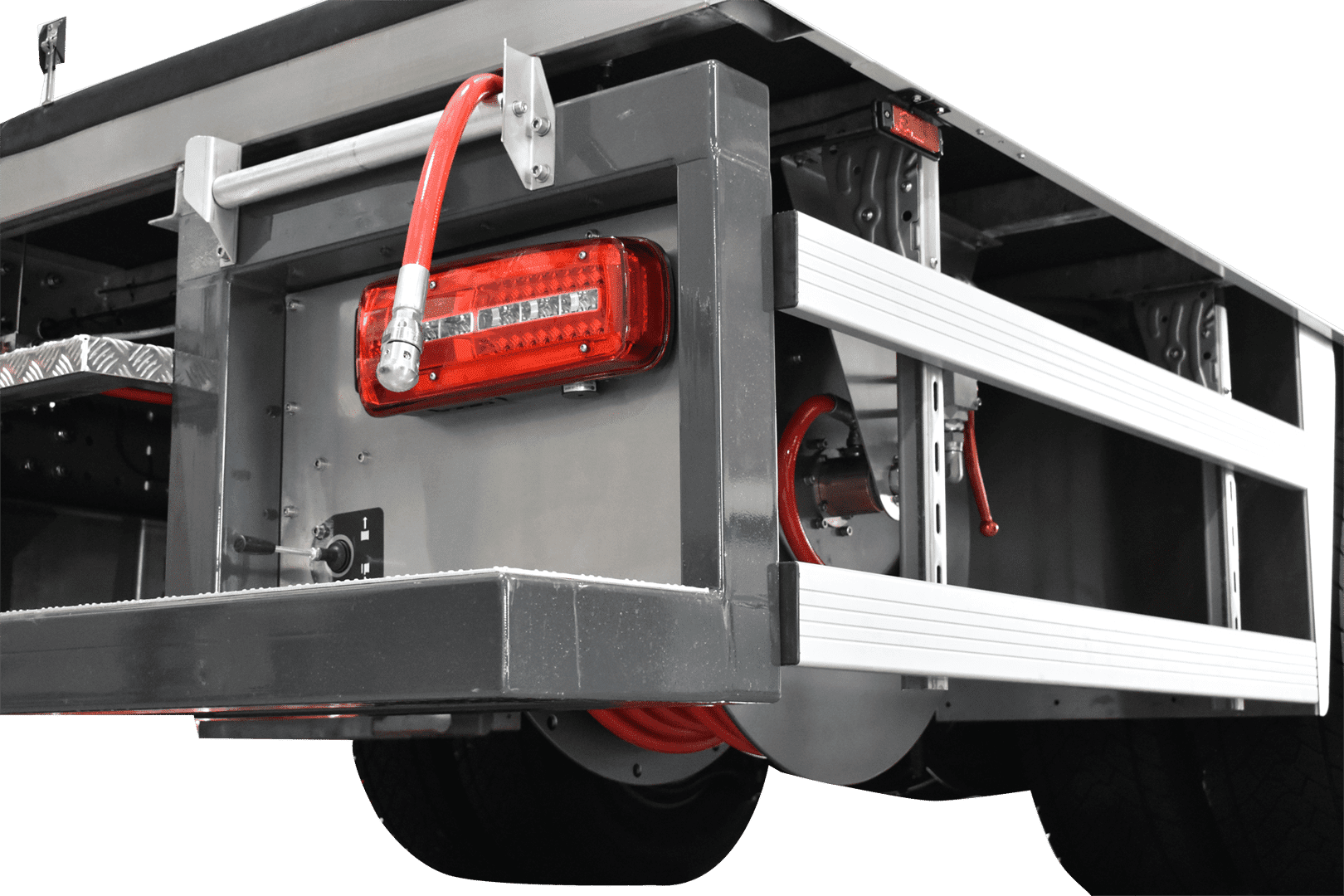

HIGH-PRESSURE HOSE REEL

10

ROBOT STORAGE DRAWERS

11

HEATING RADIATOR

12

SLIDING DOOR TO ACCESS
OPERATOR STUDIO

13

Clean white wall lining

14

HAND SANITIZER

15

WORKBENCH with power receptacles

16

TOOLS & EQUIPMENT STORAGE

17

COATED FLOOR

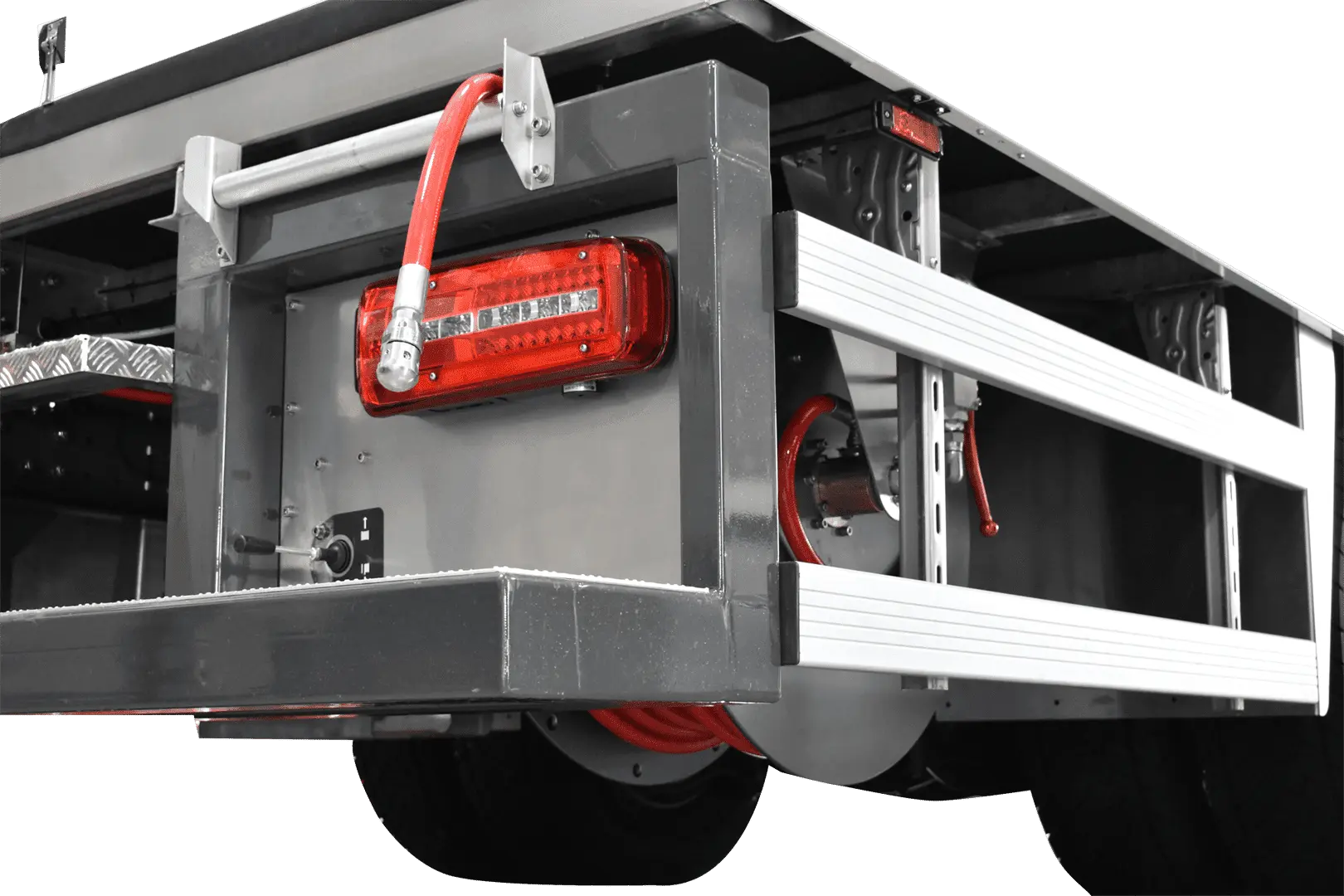

18

STEP BUMPER

19

UNDER CARRIAGE STORAGE BOXES

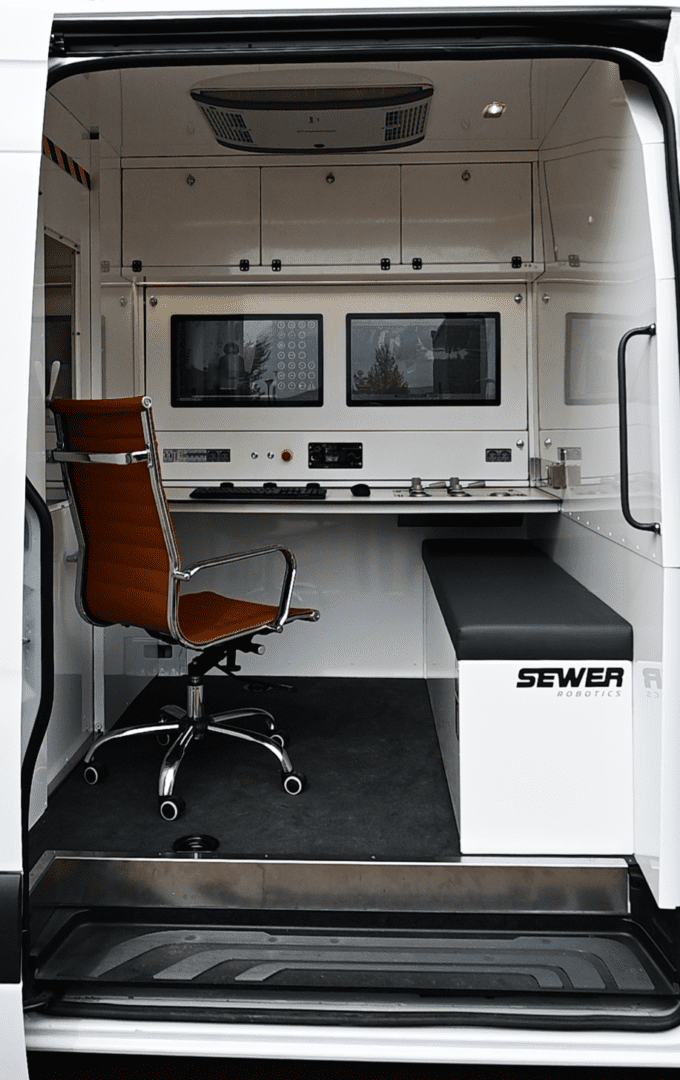

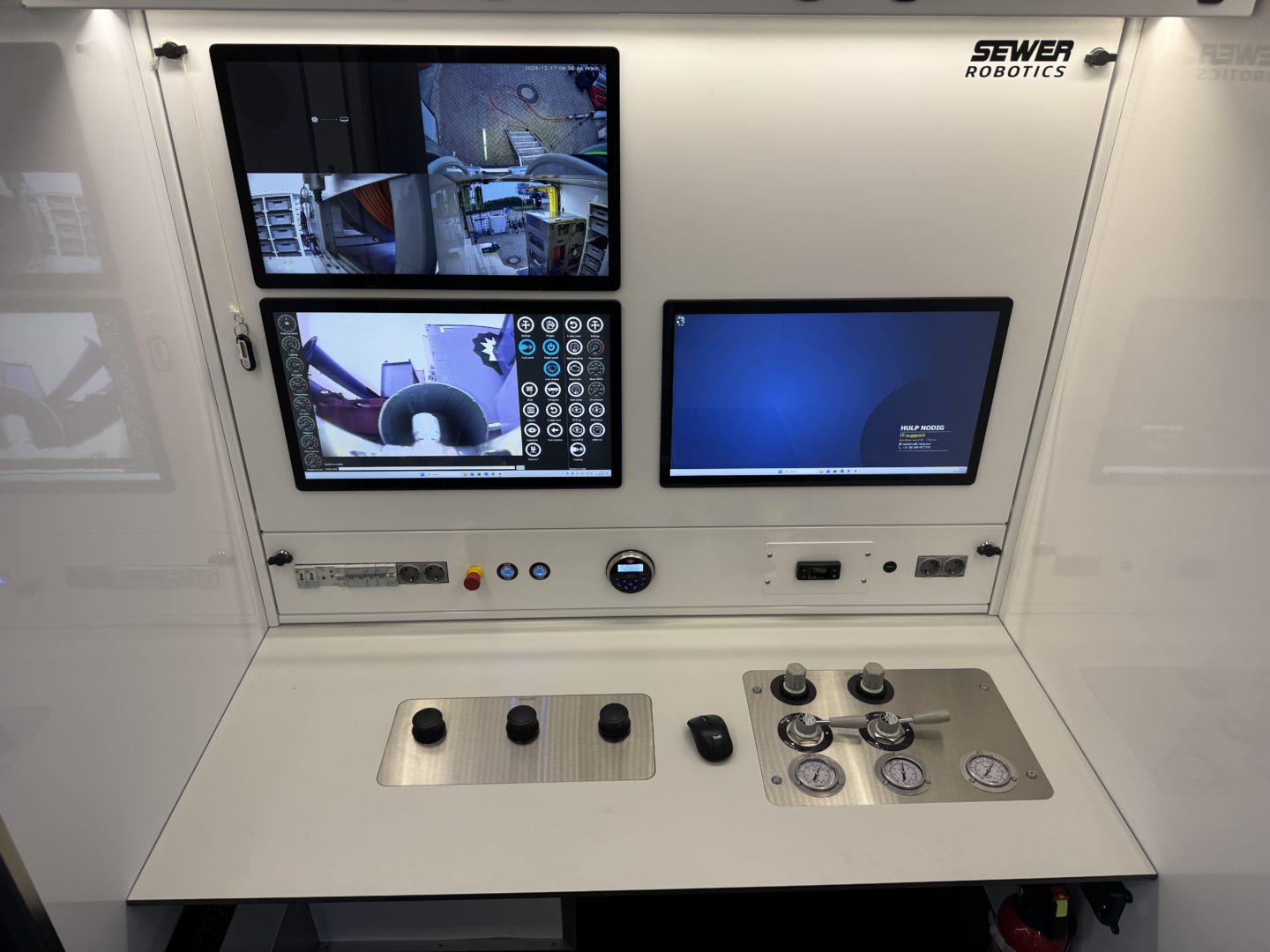

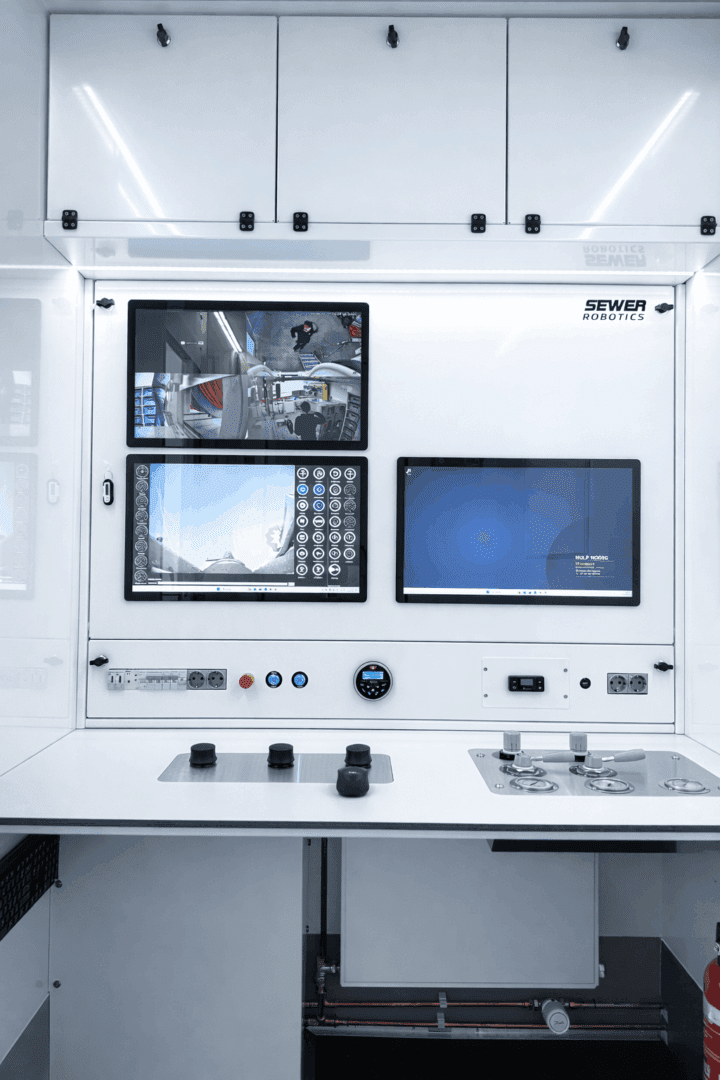

1

cabinetry

2

Led lighting

3

Cctv vicinity camera system

4

Power receptables

5

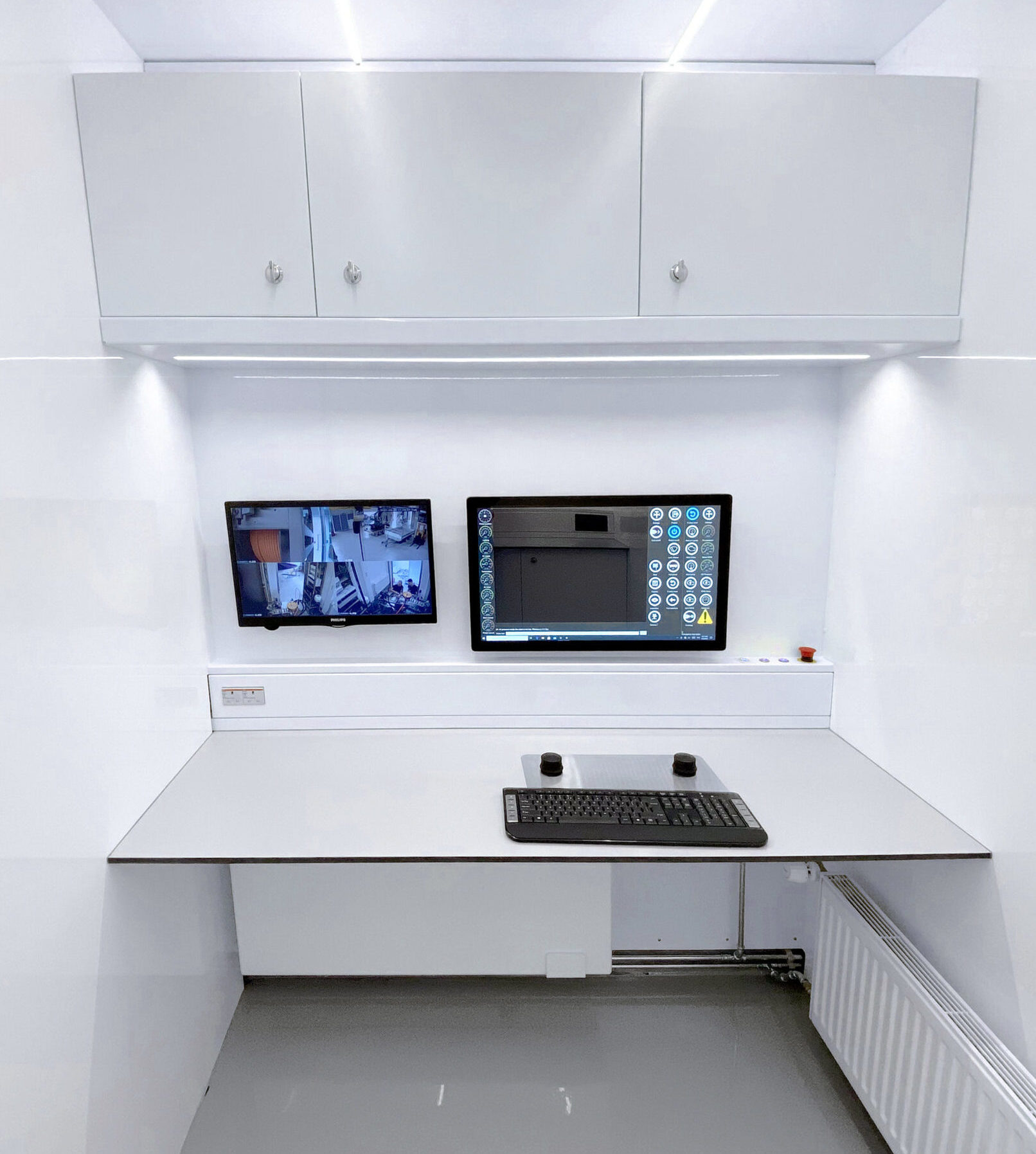

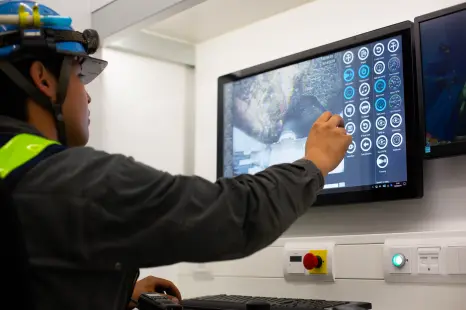

27” Touch sreen pc control unit

6

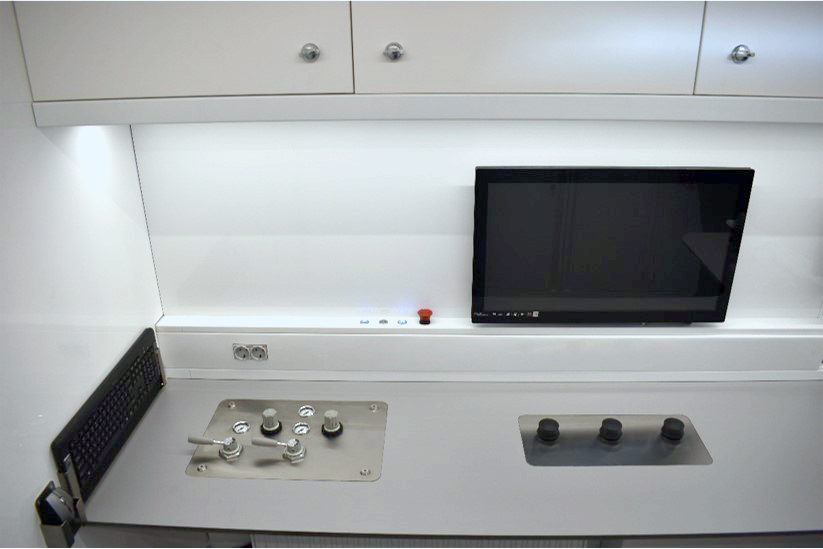

Operator desk with flush mounted joysticks

7

Emergency stop, lighting and system power buttons

8

Air conditioner

9

HEATING RADIATOR

10

Coated floor

11

Clean White wall lining

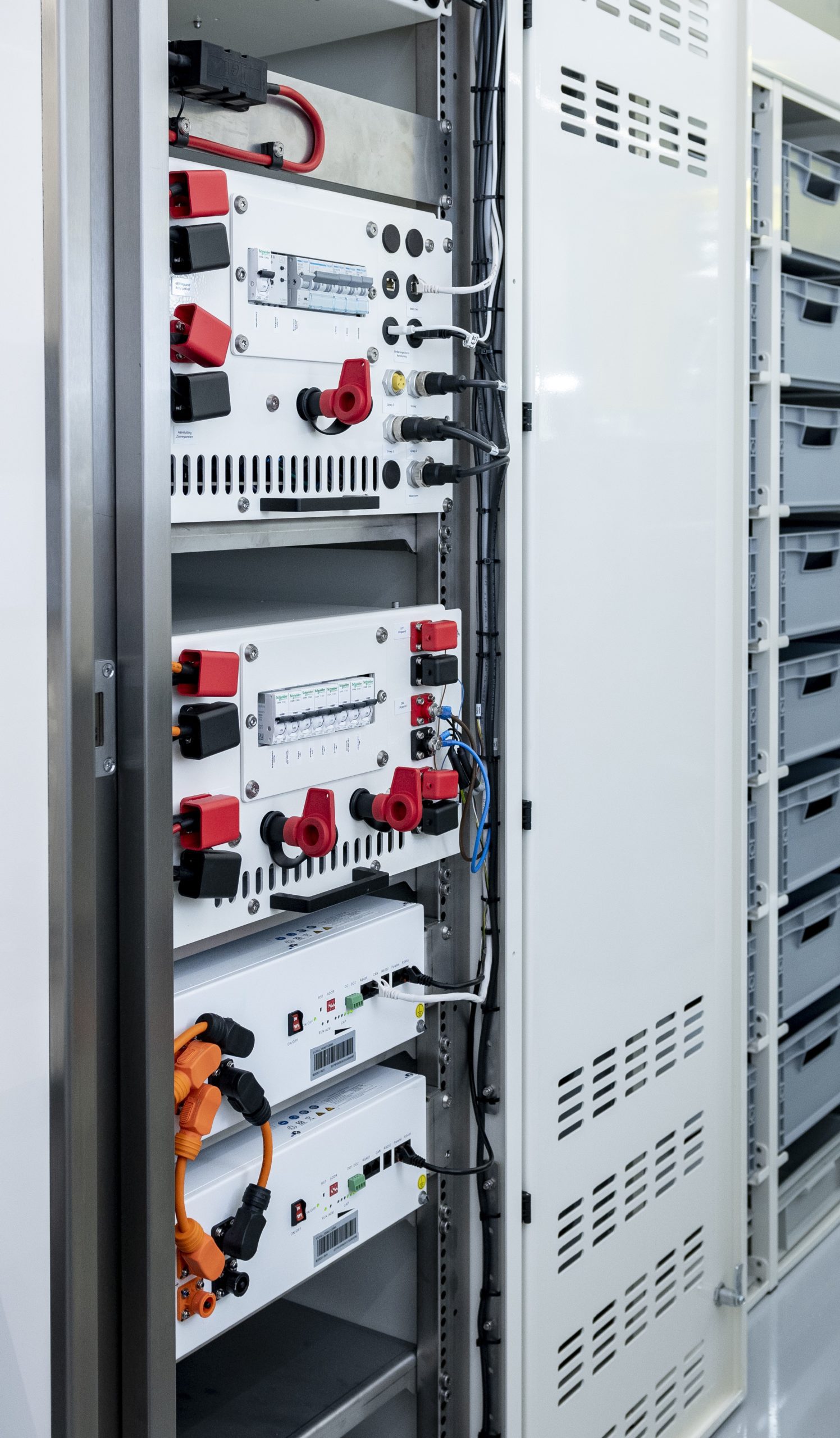

PRO's - Engine Room

“Plug-and-play, box integrated systems”

Box installation

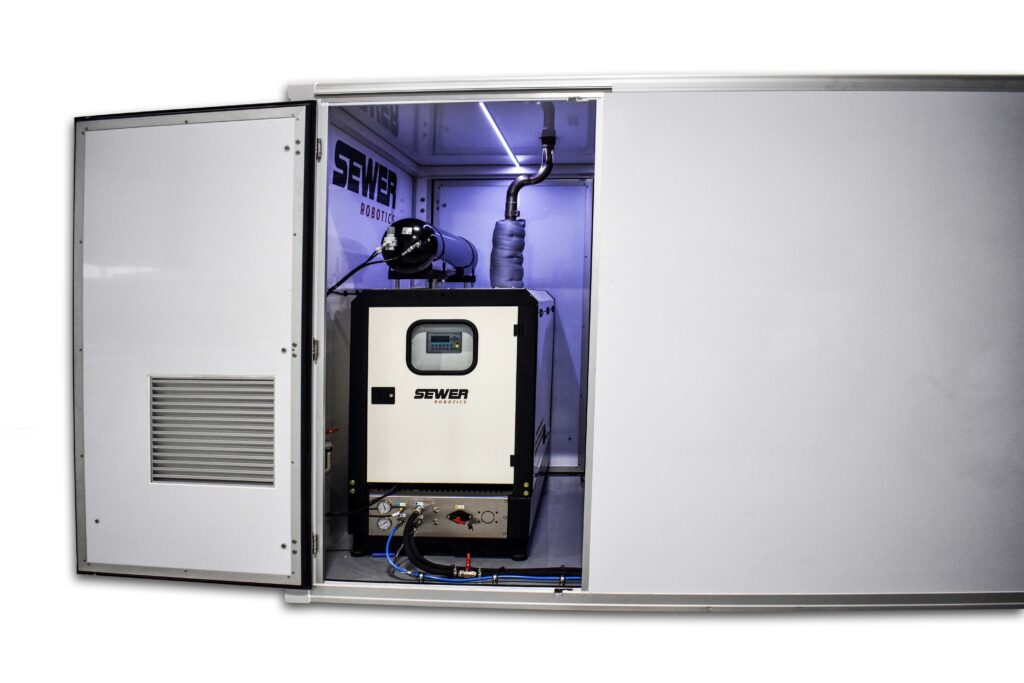

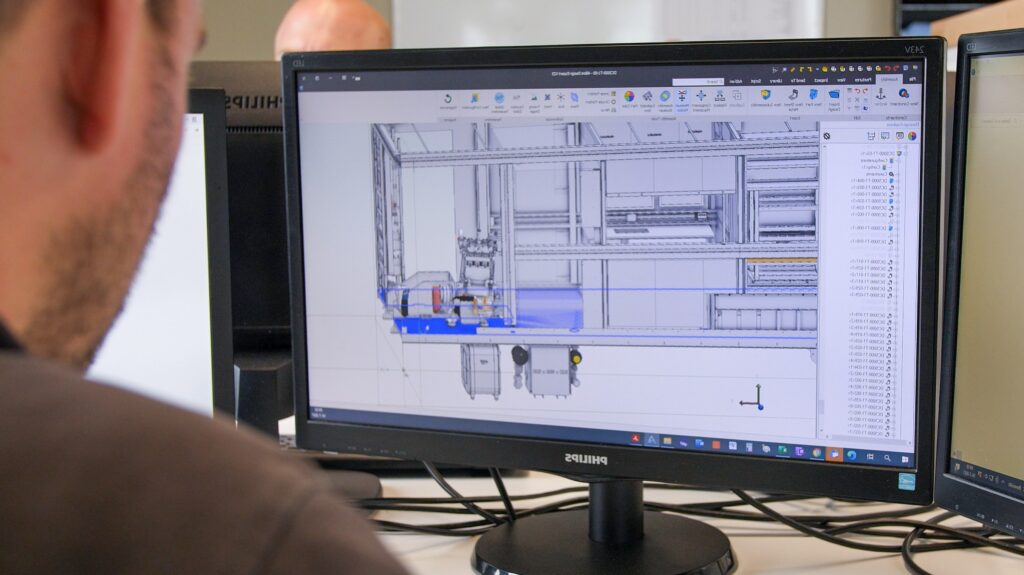

Sewer Robotics box installations are built in our factory, with all bells and whistles, to meet
our quality standards and your (custom) requirements.

Such box integrated system is easily shipped inside a container and installed on a suitable
chassis anywhere in the world.

INTEGRATION ACCESSORIES

Jetting Capacity

By adding a jetting pump with hydraulic reel, the same precision cutting vehicle and crew can flush removed materials from the obstruction back to the manhole to increase production.

The jetting pump and hose reel can be driven by the same engine or PTO that drives the Ultra High Pressure pump

Packer controls

A third joystick and pneumatic (top-hat) packer controls can be added to enhance operator convenience
