R125 Crawler
(150-600mm|6-24″)

The Sewer Robotics R125 crawler is easily transformed from a powerful reinstatement cutter to a water jet cutter, just by swapping modules in less than 60 seconds.

  • Available job-specific modules for the R125
  • UHP water jet cutting for the removal of solid obstructions and
    deposits settled
  • Lateral reinstatement & cutting protruding taps
  • Installation of Top Hats and other (UV) spot repair patches
  • Removing rocks and other items from pipelines with the gripper
  • CCTV Inspection

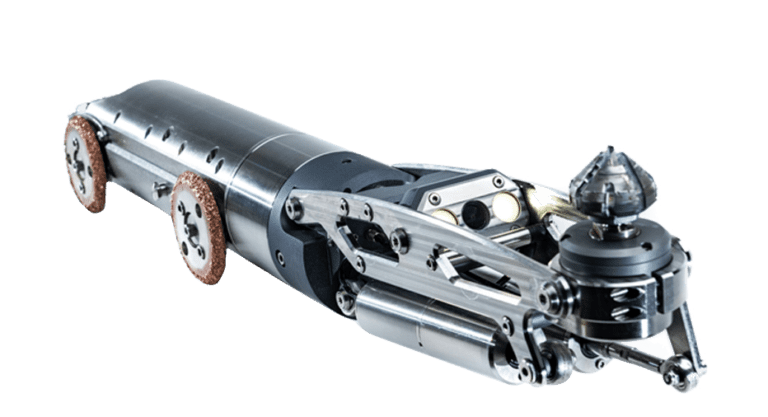

HA125 LATERAL REINSTATEMENT CUTTING
(150-500mm | 6-20")

HA125

Lateral Reinstatement Cutting

The HA125 reinstatement cutter has a decent clearance inside relined 150mm (6”) pipelines and can be used inside pipelines up to 500mm (20”) with its 205 mm (8”) ram lift.

The 90-degree cutter motor pivot and ram lift are hydro-pneumatically actuated for maximized durability, force and precision without hydraulics inside the robot.

The durable R125 is easy to service and features a powerful cutter motor, great camera visibility with lens cleaner and very precise and operator friendly controls.

“the most powerful 150mm (6”) cutter on the market!”

Cutter motor

Although most contractors appreciate the added power, low maintenance costs and easy upgrading to water jet cutting, there might be jobs where a water supply is not desired or silence more appreciated.

SEWER ROBOTICS cutters can be used with powerful water driven, pneumatic or silent electric cutter motors.

DriveBenefits
Sewer Robotics icon tintWater+ Extreme power
+ Low maintenance costs
+ Upgrade to water jet cutting
Sewer Robotics icon windAir+ No water supply required
Sewer Robotics icon boltElectric+ Single cable
+ Silent
+ No water supply required

Specifications

Scope of use       : 150 – 500mm (6-20”)
Cutting motor     : WM300 – Water
                         : PM300 – Pneumatic
                         : EM300 – Electric
Movements         : 4-axis
Drive                  : AWD – Electric
Rotation (pan)     : 500° – Electric
Ram lift               : 205mm(8”)
                          : Hydro-pneumatic
Cutter pivot (tilt)  : 90°- Hydro-pneumatic
Lighting               : Intensity adjustable LEDs
Lens cleaner        : Compressed Air
                          : Water
Weight                : 5,1kg (11.2lbs)
Lenght                : 342mm (13.5”)

Features

  • Compatible with R125 Crawler
  • Heavy-duty materials
  • Speed adjustable movements
  • Wide angle color camera with Sapphire protection lens
  • Durable stainless body without delicate exterior parts
  • Short design with hinging strain relief for tight manholes
  • Maintenance friendly

Accessories

  • M14x2 threaded cutter bits & tools
  • Cutter brackets for circumferential and
    longitudinal cutting
  • Packer ‘puck’ coupling mechanism
  • Gripper

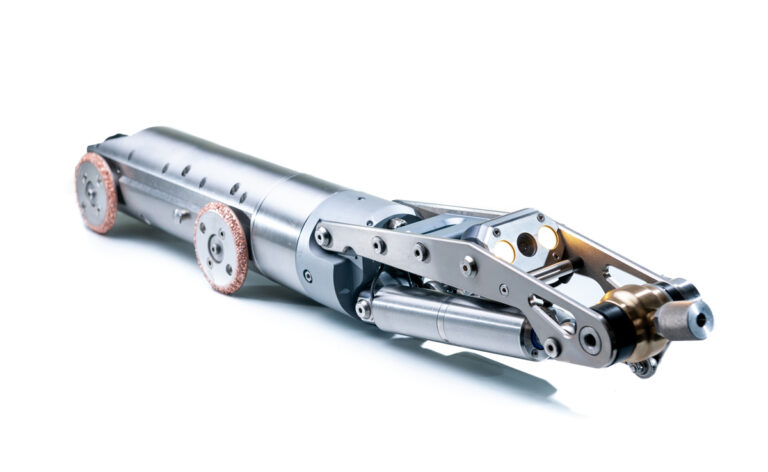

WJ125 Water jet cutting
(150-600mm | 6-24")

WJ125

Water Jet Cutting

High-pressure water jet cutting is the best and most efficient solution for removing solid obstructions and deposits settled.

Water jet cutting uses a targeted high pressure water blast, precisely applied and continuously monitored, to remove roots, cement, grout, concrete, failed liners and mineral deposits without adding damage to the host pipe.

“Remove roots, cement, grout, concrete,
failed liners and mineral deposits”

Specifications

Scope of use       : 150 – 600mm (6-24”)
Max. pressure     : 3000 bar (43,500 psi)
Movements         : 4-axis
Drive                  : AWD – Electric
Rotation (pan)     : 500° – Electric
Ram lift               : 210mm (8”)
                          : Hydro-pneumatic
Nozzle pivot (tilt) : 110°- Hydro-pneumatic
Camera rotation   : Infinite
Lighting               : Intensity adjustable LEDs
Lens cleaner        : Compressed air
Length                : 350mm (13.7”)
Weight                : 5kg (11lbs)

Features

  • Compatible with R125 crawler
  • Heavy duty materials
  • Speed adjustable movements
  • Wide angle color camera with Sapphire protection lens
  • Twist-and-lock mechanism

Accessories

  • Rotary- and pinpoint nozzles with extensions
  • Fluid lens cleaner for concrete cutting
  • Mixing unit to add root foaming or grease dissolving, additives
  • Gripper

CAM125 CCTV Inspection
(150-500mm | 6-20")

CAM125

High Definition CCTV Cutting

The CAM125 module connects the CAMTRONICS ZRK70 HD Pan & Tilt inspection camera with the Sewer Robotics R125 crawler for quick HighDefinition pre- and post inspections.

The CAM125 module features a pan & tilt camera and a pressure adjustable air coupling at the front, operated from the control unit to connect with most available spot repair packers in the market.

"Camera compatible with push cable for
inspection of 4” (100mm) pipeline"

Specifications

Scope of use           : 150 – 500mm (6-20”)
Drive                      : AWD – Electric
Video                     : Analog HD
                             : 1080p, 30fps (recorded)
Internal storage      : 32 GB
Camera pan            : Infinite
Camera tilt             : 230°
Focus                     : Manual
Lighting                  : Intensity adjustable LEDs
Location transmitter : 512 Hz
Inspection software : WINCAN (WRc, NASSCO)
                             : POSM (NASSCO)
Air pressure            : Max. 10 bar (145psi)
Length                    : 158mm (6.2”)
Weight                    : 1,6kg (3.6lbs)

Features

  • Compatible with R125 crawler
  • Compatible with SEWER ANALYTICS WEB
  • Automatic web synchronization
  • Auto-horizon adjustment
  • Single button joint inspection
  • Air coupling for spot repair packers
  • Camera compatible with push cable forinspection of 100mm (4”) pipeline

Accessories

  • Push cable reel for inspections inside 100mm (4”) pipelines
  • Laser crack measurement
  • 512Hz Locator receive

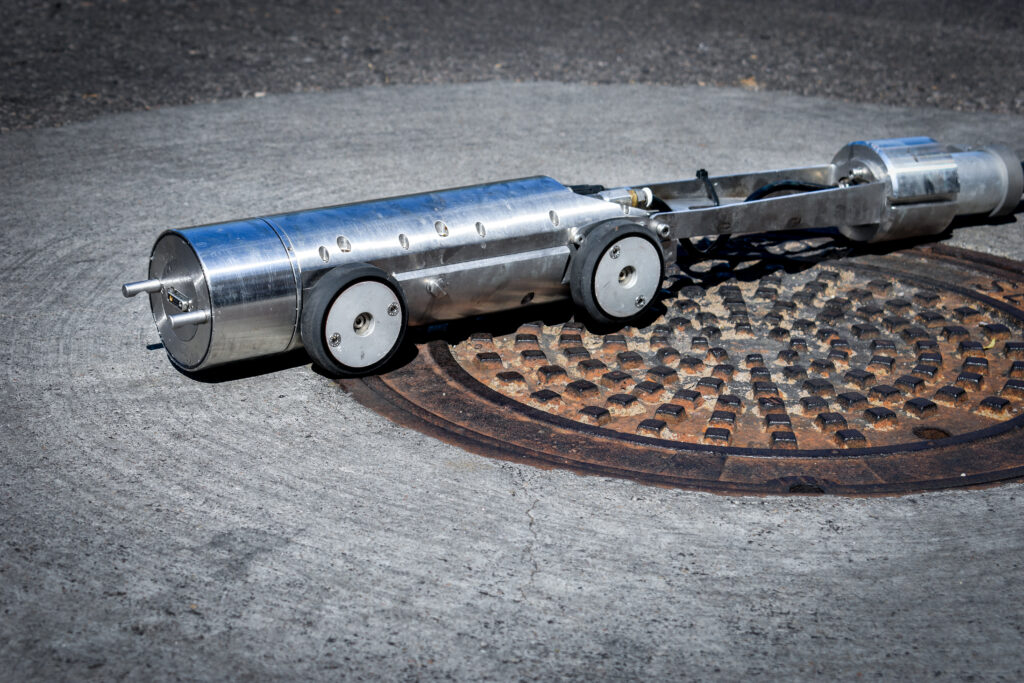

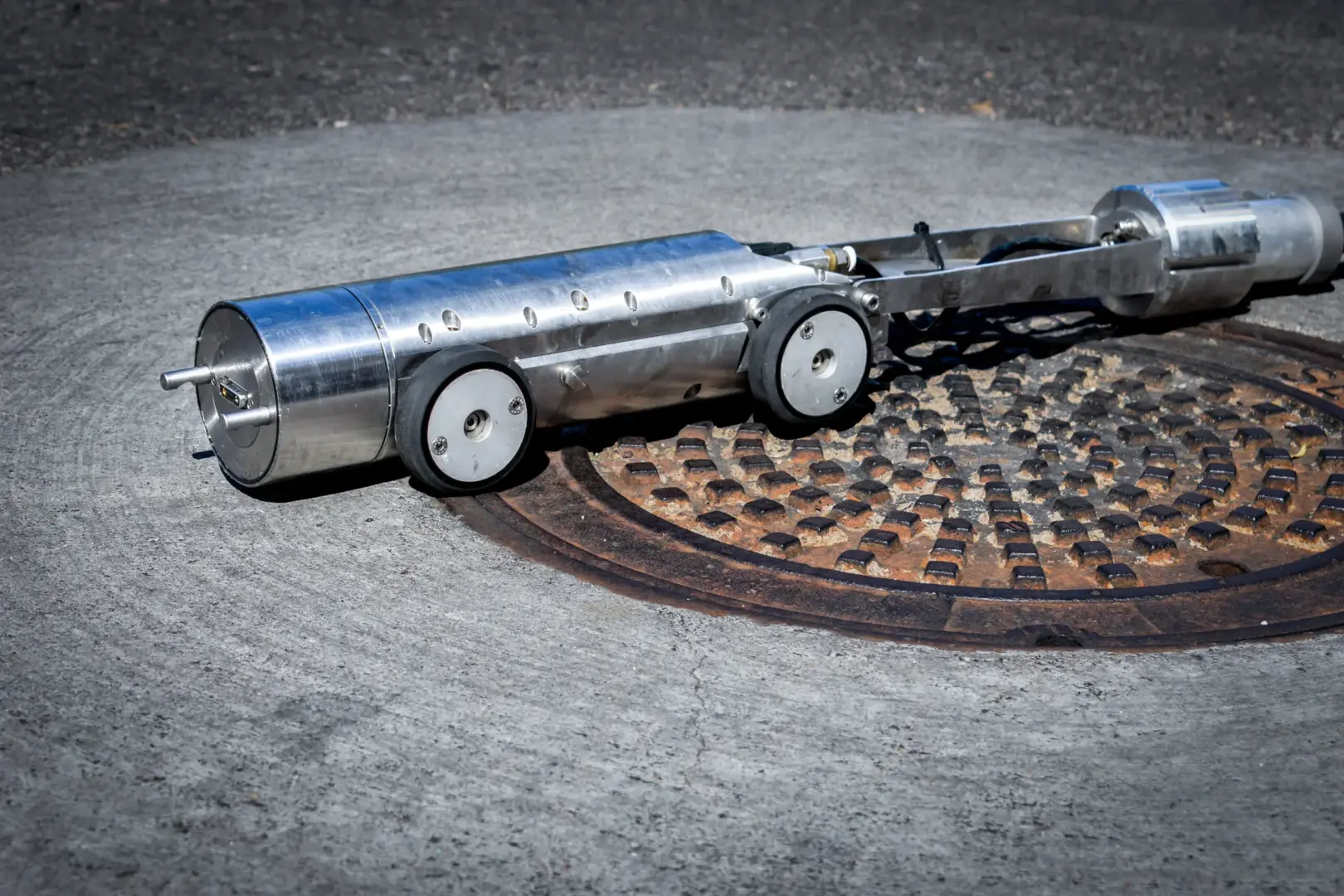

R125 Crawler
(150-600mm | 6-24")

R125

Multi-functional Crawler

The multi-functional and heavy-duty, stainless steel, R125 crawler has a very slim 100mm (4”) body for maximized clearance inside 150mm (6”) pipelines.

The R125 features the twist-and-lock mechanism to exchange various job-specific equipment modules within 60 seconds and is compatible with SEWER ROBOTICS’ mobile and vehicle integrated control units, cable- and hose reels.

"Exchange various job-specific
equipment modules within 60 seconds"

Applications

Specifications

Scope of use    : 150 – 600mm (6-24”)
Drive               : AWD – Electric
Rotation (pan)  : Infinite – Electric
Length             : 405mm (16”)
Body diameter  : 100mm (3.9”)
Weight             : 15kg (33lbs)

Compatible Modules

  • WJ125 Water jet cutting 150 – 600mm (6-24”)
  • HA125 Lateral reinstatement 150 – 500mm (6-20”)
  • CCTV Inspection 150 500mm (6-20”)
  • Gripper 150 – 600mm (6-24”)

Features

  • Twist-and-lock-mechanism
  • Heavy-duty stainless steel
  • Roll and Pitch sensors (x-y)
  • Continuously pressurized
  • Pressure sensor
  • Rotation sensor
  • Temperature sensor

Accessories

  • Wheels and spacers
  • Additional weights
  • Auxilary lighting
  • Auxilary camera with 180° rotation for
  • Looking forward and backward

Gripper

About

Gripper

The gripper accessory is compatible with all water driven lateral reinstatement and water jet cutting jobspecific modules. It has 3 replaceable ‘fingers’ that can be closed to grab and remove solid debris and
other undesired objects from pipelines.

The closing force of the gripper’s fingers is controlled by adjusting the pressure of the high-pressure
power pack.

"Grab and remove solid debris and
other undesired objects from pipelines"

Compatible Modules

  • HA125 Lateral reinstatement
  • WJ25 Water jet cutting
  • HA195 Lateral reinstatement
  • WJ180 Water jet cutting
  • WJ200 Water jet cutting
  • HA250 Lateral reinstatement
  • WJ250 Water jet cutting

Features

  • Heavy duty materials
  • Adjustable ‘fingers’ for different sizes and closing angles
  • Adjustable closing force

Request online demonstration

Time UTC+1:
Durable stainless body

Without delicate exterior parts and with a diameter of only 100mm (4”).

Its durable and short design provides ease of deployment from tight manholes and sufficient clearance to reach far inside pipes.

Adjustable speeds

Of the electric movements (driving and rotating) allow operators to drive to the job fast. Then reduce the speed to maximize precision.

Twist-and-lock mechanism

Convert the reinstatement cutter into a UHP Water jet cutting- or CCTV inspection robot within 60 seconds. The available, purpose-build, modules widen the robot’s application range, while UHP water jet cutting provides access to a niche market with high rates and low competition.

Great visibility

A wide-angle camera with continuously adjustable LED lighting is placed directly behind the cutter and easily cleaned with the on-demand lens cleaner.

power

The powerful WM300 water hydraulic cutter motor cuts rapidly through cast iron, concrete and CIPP liner material and leaves a smooth cut.

After removing the cutter motor, an (UV) spot repair packer can be attached via a “puck” coupling.

Hydro-pneumatic actuators

The 205mm (8”) ram lift and 90° cutter motor pivot provide a very wide application scope from 150 – 500mm (“6-20”) and are realized by hydro-pneumatic actuators.

These in-house developed, linear actuators are operated with compressed air and have an enclosed hydraulic circuit to combine the strength and precision of hydraulic cylinders with the convenience and serviceability of pneumatic actuators without hydraulics inside the robot.

TWIST-AND-LOCK MECHANISM

Convert the UHP water jet cutter into a powerful lateral reinstatement cutter- or CCTV inspection robot within 60 seconds. The available, purpose-build, modules widen the robot’s application range.

POWER APPLIED FROM THE RIGHT PLACE

Water jet cutting uses a targeted high pressure water blast, precisely applied and continuously monitored, to remove roots, cement, grout, concrete, failed liners and mineral deposits without adding damage to the host pipe.


The position of the 90-degree, swivelling, nozzle connection ensures a wide application scope and maximized visibility during the operation.

Hydro-pneumatic actuators

The 205mm (8”) ram lift and 110° nozzle tilt provide a very wide application scope from 150 – 600mm (“6-24”) and are realized by hydro-pneumatic actuators.

These in-house developed, linear actuators are operated with compressed air and have an enclosed hydraulic circuit to combine the strength and precision of hydraulic cylinders with the convenience and serviceability of pneumatic actuators without hydraulics inside the robot.
