R250 Crawler
(250-1000mm|10-40″)

The Sewer Robotics R250 crawler is easily transformed from a powerful reinstatement cutter to a water jet cutter, just by swapping modules in less than 60 seconds.

  • Available job-specific modules for the R250
  • UHP water jet cutting for the removal of solid obstructions and
    deposits settled
  • Lateral reinstatement & cutting protruding taps
  • Installation of Top Hats and other (UV) spot repair patches
  • Removing rocks and other items from pipelines with the gripper

HA250 LATERAL REINSTATEMENT CUTTING
(250-1000mm | 10-40")

HA250

Lateral Reinstatement Cutting

The HA250 is the most powerful and durable robot available for reinstating service connections after CIPP relining and cutting protruding laterals and hammer taps of any material from inside 250 – 1000mm (10-40”)
pipelines.

This beast is strong enough to pull a 9 ton truck and features infinite rotation, great camera visibility with both a water lens cleaner and on demand lens wiper, and very precise and operator friendly controls.

This beast is strong enough to pull a 9 ton truck

Cutter motor

Although most contractors appreciate the added power, low maintenance costs and easy upgrading to water jet cutting, there might be jobs where a water supply is not desired or silence more appreciated.

SEWER ROBOTICS cutters can be used with powerful water driven, pneumatic or silent electric cutter motors.

DriveBenefits
Sewer Robotics icon tintWater+ Extreme power
+ Low maintenance costs
+ Upgrade to water jet cutting
Sewer Robotics icon windAir+ No water supply required
Sewer Robotics icon boltElectric+ Single cable
+ Silent
+ No water supply required

Specifications

Scope of use      : 300 – 1000mm (12-40”)
Cutter motor      : WM500 Water
                        : PM500 Pneumatic
                        : EM500 Electric
Movements        : 4-axis
Drive                 : AWD – Electric
Rotation (pan)    : Infinite – Electric
Ram lift              : 325mm (13”)
                         : Hydro-pneumatic
Cutter pivot (tilt) : 90° – Hydro-pneumatic
Camera rotation  : Infinite
Lighting              : Intensity adjustable LEDs
Lens cleaner       : Water
                         : On-demand wiper
Length               : 605mm (23.6”)
Weight               : 25kg (77lbs)

Features

  • Compatible with R250 crawler
  • Heavy duty materials
  • Speed adjustable movements
  • Wide angle color camera with Sapphire
    protection lens

Accessories

  • M14x2 threaded cutter bits & tools
  • Cutter brackets for circumferential and
    longitudinal cutting
  • Packer ‘puck’ coupling mechanism
  • Gripper

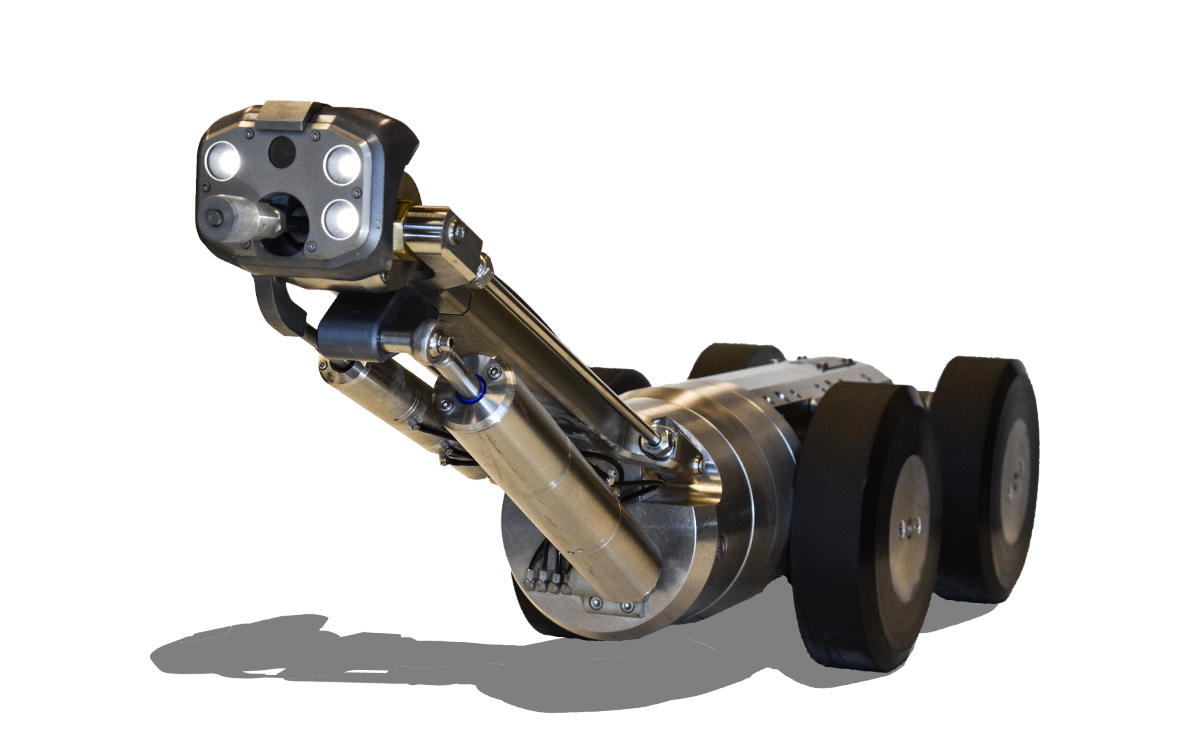

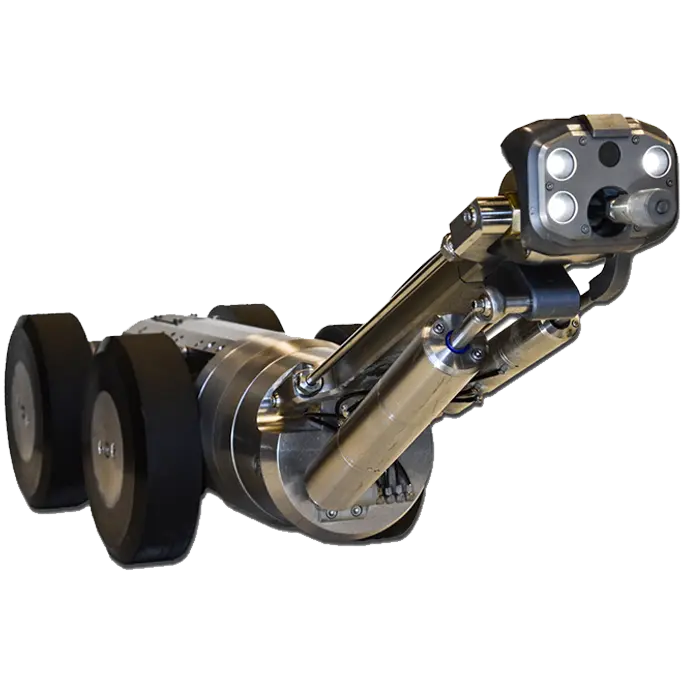

WJ250 Water jet cutting
(250-1000mm | 6-40")

WJ250

Water Jet Cutting

The WJ250 water jet cutting robot can be used for fast and powerful high pressure pipe cleaning and solid obstructions removal inside 250 – 1000mm (10–40”) sewer-, storm- and water pipelines.

This beast features infinite rotation while precisely applying a water blast of max. 3000 bar (43,500psi) for controlled removal of tree roots, solidified fat, grease, grout, cement, tuberculation, scaling, grout, cement, failed liner, calcium, mineral deposits and concrete to avoid costly pipeline replacement.

This beast features infinite rotation while precisely
applying a water blast of max. 3000 bar (43,500psi)"

Specifications

Scope of use       : 250 – 1000mm (10-40”)
Max. pressure     : 3000 bar (43,500psi)
Movements         : 4-axis
Drive                  : AWD – Electric
Rotation (pan)     : Infinite – Electric
Ram lift               : 520mm (20”)
                          : Hydro-pneumatic
Nozzle pivot (tilt) : 90° – Hydro-pneumatic
Camera rotation   : Simultaneous with nozzle
Lighting               : Intensity adjustable LEDs
Lens cleaner        : Compressed air
Length                : 650mm (23.6”)
Weight                : 35kg (77lbs)

Features

  • Compatible with R125 crawler
  • Heavy duty materials
  • Speed adjustable movements
  • Wide angle color camera with Sapphire protection lens
  • Twist-and-lock mechanism
  • No external UHP hoses

Accessories

  • Rotary- and pinpoint nozzles with extensions
  • Fluid lens cleaner for concrete cutting
  • Mixing unit to add root foaming or grease dissolving, additives
  • Gripper

R250 Crawler
(250-1000mm|10-40")

R250

Multi-functional Crawler

The multi-functional and heavy-duty, stainlesssteel, R250 crawler features an UHP swivel forinfinite rotation.

The various job- specific equipment modules are easily exchanged for underground pipe inspection, cleaning, cutting and rehabilitation from lined 250mm (10”) pipes and larger with a variety of wheels and spacers.

The R250 features the twist-and-lock mechanism to exchange equipment modules within 60 seconds.

The R250 is compatible with SEWER ROBOTICS’ mobile and vehicle integrated control units, cable- and hose reels.

"Exchange various job-specific
equipment modules within 60 seconds"

Applications

Specifications

Scope of use      : 250 – 1000mm (10-40”)
Max. pressure    : 3000 bar (43,500psi)
Drive                 : AWD – Electric
Rotation (pan)    : Infinite – Electric
Length               : 645mm (25.4”)
Weight               : 57kg (126lbs)

Compatible Modules

  • WJ250 Precision Water Jet Cutting 300 – 1000mm (12-40“)
  • HA250 Lateral Reinstatement Cutting 300 – 1000mm (12-40“)
  • CAM250 CCTV Inspection 300 – 1000mm (12-40“)
  • Gripper 300 – 1000mm (12-40“)

Features

  • Twist-and-lock-mechanism
  • Heavy-duty stainless steel
  • Roll and Pitch sensors (x-y)
  • Continuously pressurized
  • Pressure sensor
  • Rotation sensor
  • Temperature sensor

Accessories

  • Wheels and spacers
  • Additional weights
  • Auxilary lighting
  • Auxilary camera with 180° rotation for looking forward and backward

Gripper

About

Gripper

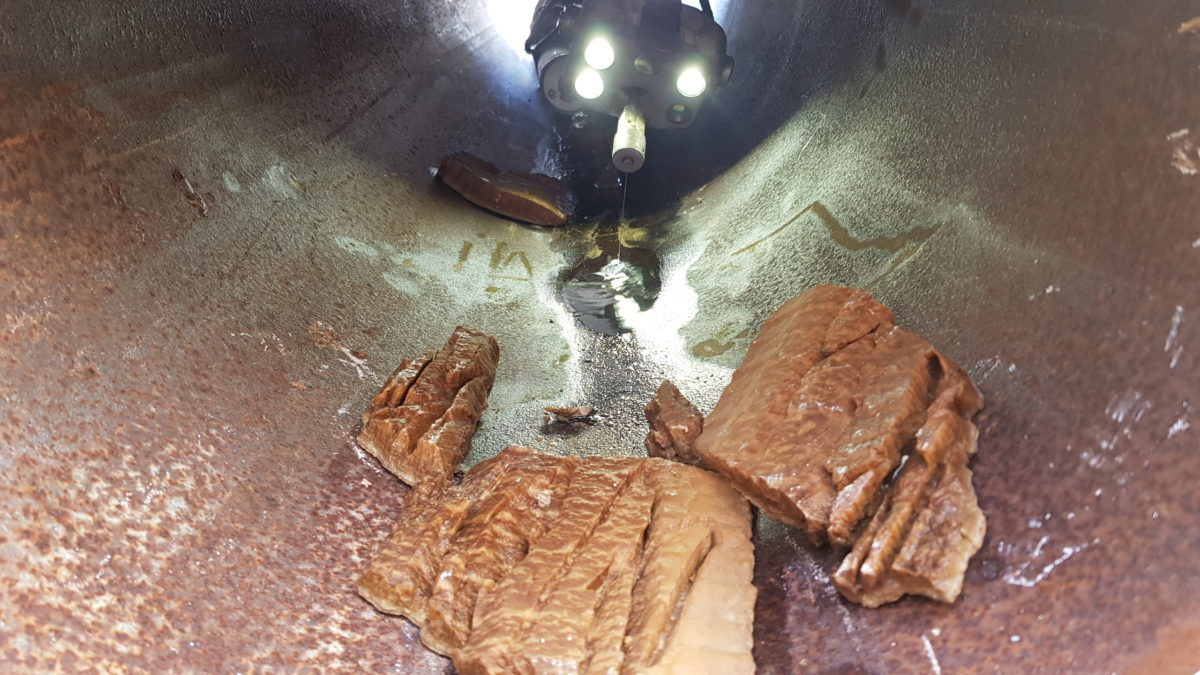

The gripper accessory is compatible with all water driven lateral reinstatement and water jet cutting jobspecific modules. It has 3 replaceable ‘fingers’ that can be closed to grab and remove solid debris and
other undesired objects from pipelines.

The closing force of the gripper’s fingers is controlled by adjusting the pressure of the high-pressure
power pack.

"Grab and remove solid debris and
other undesired objects from pipelines"

Compatible Modules

  • HA125 Lateral reinstatement
  • WJ25 Water jet cutting
  • HA195 Lateral reinstatement
  • WJ180 Water jet cutting
  • WJ200 Water jet cutting
  • HA250 Lateral reinstatement
  • WJ250 Water jet cutting

Features

  • Heavy duty materials
  • Adjustable ‘fingers’ for different sizes and closing angles
  • Adjustable closing force
