R160 Crawler
(200-750mm|8-30″)

The Sewer Robotics R160 crawler is easily transformed from a powerful reinstatement cutter to a water jet cutter, just by swapping modules in less than 60 seconds.

  • Available job-specific modules for the R160
  • UHP water jet cutting for the removal of solid obstructions and
    deposits settled
  • Lateral reinstatement & cutting protruding taps
  • Installation of Top Hats and other (UV) spot repair patches
  • Removing rocks and other items from pipelines with the gripper
  • CCTV Inspection

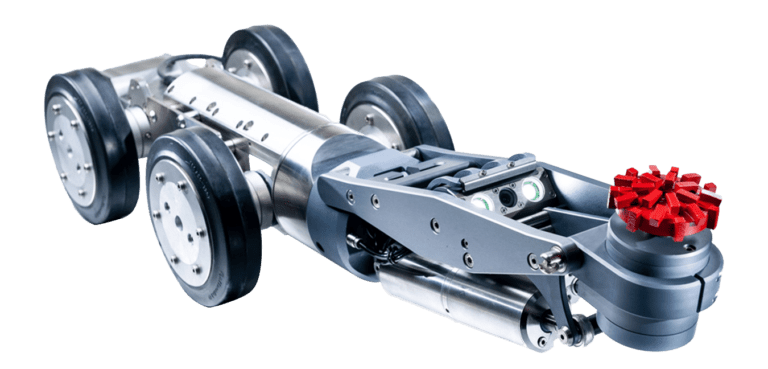

HA195 LATERAL REINSTATEMENT CUTTING
(250-750mm | 8-30")

HA195

Lateral Reinstatement Cutting

The HA195 reinstatement cutter features an infinite rotating camera with water lens cleaner and on-demand wiper for a clear and unobstructed view while reinstating service connections after lining and cutting protruding laterals and hammer taps of any material from inside 250 – 750mm (10-30”) pipelines.

This HA195 reinstatement cutter can be used with the powerful WM500 water driven cutter motor, or -when water jet cutting is not desired with a pneumatic or silent electric driven cutter motor.

The cutter motor can be easily replaced for a packer coupling mechanism to catch the ‘puck’ of most ready available spot repair packers.

"Compatible With Most Top Hat And (Uv) Spot Repair Packers”

Specifications

Scope of use       : 250 – 750mm (10-30”)
Cutting Motor      : WM500 – water
                         : AM500 – pneumatic
                         : EM500 – electric
Movements         : 4-axis
Drive                  : AWD – electric
Rotation (pan)     : Infinite – electric
Ram lift               : 270mm (11”)
: Hydro pneumatic
Cutter Pivot (tilt)  : 90° – Hydro-pneumatic
Camera Rotation  : Infinite
Lighting               : Intensity adjustable LEDs
Lens cleaner        : Water
                          : On-demand wiper
Weight                : 12kg (26.5lbs)
Lenght                : 458mm (18.7”)

Features

  • Compatible with R160 Crawler
  • Coupling mechanism for spot repair packers
  • Heavy-duty materials
  • Speed adjustable movements
  • Wide angle color camera with Sapphire
    protection lens
  • Durable stainless body without delicate
    exterior parts
  • Maintenance friendly

Accessories

  • M14x2 threaded cutter bits & tools
  • Cutter brackets for circumferential and
    longitudinal cutting
  • Packer ‘puck’ coupling mechanism
  • Gripper

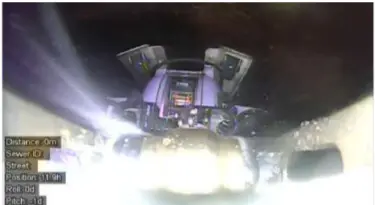

WJ180 Water jet cutting
(200-500mm | 8-20")

WJ180

Water Jet Cutting

The WJ180 precision water jet cutting module is  compatible with the R160 crawler for removing root balls, hardened fat, grease, cement, scaling, calcium, mineral build- up and overpoured concrete from within 200 – 500mm (8- 20”) pipes.

The WJ180 features a moving camera, lens cleaner and 90 degrees nozzle lift.

“the very first water jet cutting robot was build
15 years ago and still in daily operation”

Specifications

Scope of use       : 200 – 500mm (8-20”)
Max. pressure     : 3000 bar (43,500 psi)
Movements         : 4-axis
Drive                  : AWD – Electric
Rotation (pan)     : Infinite – Electric
Nozzle pivot (tilt) : 90° – Hydro-pneumatic
Camera rotation  : Simultaneous with nozzle
Lighting              : Intensity adjustable LEDs
Lens cleaner       : Compressed air
Length               : 250mm (9,8”)
Weight               : 7,5kg (16.4lbs)

Features

  • Compatible with R160 crawler
  • Heavy duty materials
  • Speed adjustable movements
  • Wide angle color camera with Sapphire protection lens
  • Twist-and-lock mechanism

Accessories

  • Rotary- and pinpoint nozzles with extensions
  • Fluid lens cleaner for concrete cutting
  • Mixing unit to add root foaming or grease dissolving additives
  • Gripper

WJ200 Water jet cutting
(200-750mm | 8-30")

WJ200

Water Jet Cutting

The WJ200 UHP water jet cutting module removes root balls, hardened fat, grease, cement, scaling, calcium, mineral build- up and over- poured concrete from within 250 – 750mm (10-30”) pipes.

The WJ200 jetting module features 270mm (11”) arm lift and 90° nozzle- tilt to ensure the right working angle in large pipelines of up to 750mm (30”).

The LED lighting and camera are placed next to the nozzle to see exactly what the nozzle aims at.

The WJ200 water jet cutter is the descendant of the WJ190

Specifications

Scope of use       : 250 – 750mm (10-30”)
Max. pressure     : 3000 bar (43,500 psi)
Movements         : 4-axis
Drive                  : AWD – Electric
Rotation (pan)     : 500° – Electric
Ram lift               : 270mm (11”)
                          : Hydro-pneumatic
Nozzle pivot (tilt) : 90° – Hydro-pneumatic
Camera rotation   : Simultaneous with nozzle
Lighting               : 4 Intensity adjustable LEDs
Lens cleaner        : Compressed air
Length                : 461mm (18.1”)
Weight                : 8kg (17.6lbs)

Features

  • Compatible with R160 crawler
  • Heavy duty materials
  • Speed adjustable movements
  • Wide angle color camera with sapphire
    protection lens
  • Twist-and-lock mechanism

Accessories

  • Rotary- and pinpoint nozzles with extensions
  • Fluid lens cleaner for concrete cutting
  • Mixing unit to add root foaming or grease
    dissolving additives
  • Gripper

CAM160 CCTV Inspection
(200-500mm | 8-20")

CAM160

High Definition CCTV Cutting

The CAM160 module connects the CAMTRONICS ZRK70 HD Pan & Tilt inspection camera with the Sewer Robotics R160 crawler for quick High-Definition pre- and post inspections with the same robot system that is used for cutting protruding services, solid obstructions removal and lateral reinstatement cutting.

The CAM160 module features a pan & tilt camera and a pressure adjustable air coupling at the front, operated from the control unit to connect with most spot repair packers available in the market.

Compatible with SEWER ANALYTICS WEB

Specifications

Scope of use           : 200 – 500mm (8-20”)
Drive                      : AWD – Electric
Video                     : Analog HD
                             : 1080p, 30fps (recorded)
Camera pan            : Infinite
Camera tilt             : 230 °
Focus                     : Manual
Lighting                 : Intensity adjustable LEDs
Location transmitter : 512 Hz
Inspection software  : WINCAN (WRc, NASSCO)
                              : POSM (NASSCO)
Air pressure             : Max. 10 bar (145psi)

Features

  • Compatible with R160 crawler
  • Compatible with SEWER ANALYTICS WEB
  • Automatic web synchronization
  • Auto-horizon adjustment
  • Single button joint inspection
  • Air coupling for spot repair packers

Accessories

  • Push cable reel for inspections inside 100mm
    (4”) pipelines
  • Laser crack measurement
  • 512Hz locator receiver

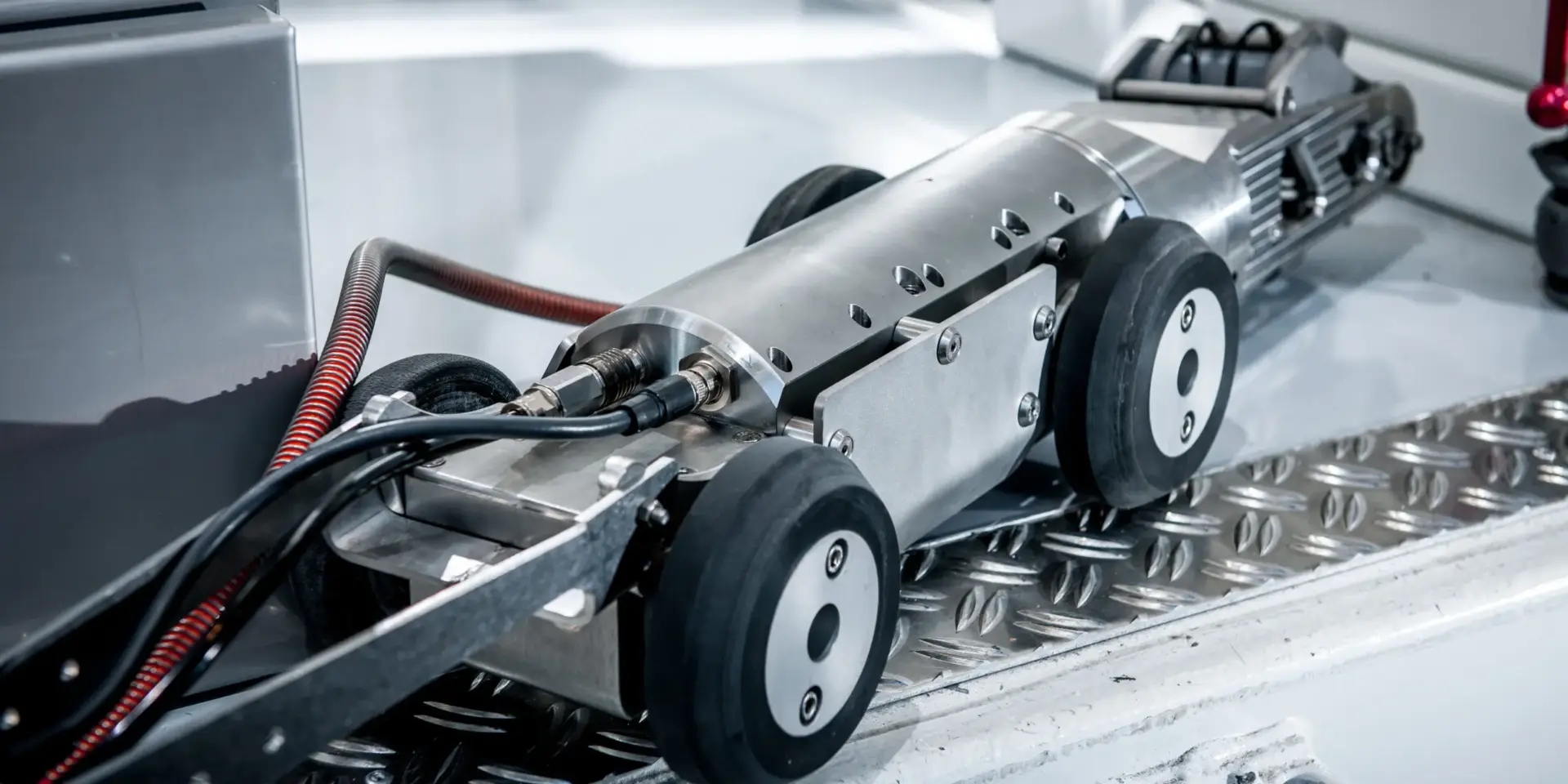

R160 Crawler
(250-750mm | 10-30")

R160

Multi-functional Crawler

The heavy duty stainless steel R160 is compatible with various job- specific equipment modules for underground pipe inspection, cleaning, cutting and rehabilitation from lined 200mm (8”) pipes and larger with a variety of wheels and spacers.

The modules can be exchanged within 60 seconds due to the twist-and-lock mechanism.

"exchange various job-specific
equipment modules within 60 seconds"

Applications

Specifications

Scope of use    : 200 – 750mm (8-30”)

Max. pressure  : 3000 bar (43,500psi)
Drive               : AWD – Electric
Rotation (pan)  : Infinite – Electric
Length             : 440mm (17.3”)
Body diameter  : 125mm (4.9”)
Weight             : 22,3kg (49.2lbs)

Compatible Modules

  • WJ180 Precision Water Jet Cutting 200 – 500mm (8-20“)
  • WJ190 Precision Water Jet Cutting 250 – 750mm (10-30“)
  • HA195 Lateral Reinstatement Cutting 250 – 750mm (10-30“)
  • CAM160 CCTV Inspection 200 – 500mm (8-20“)
  • Gripper 250 – 750mm (10-30“)

Features

  • Twist-and-lock-mechanism
  • Heavy-duty stainless steel
  • Roll and Pitch sensors (x-y)
  • Continuously pressurized
  • Pressure sensor
  • Rotation sensor
  • Temperature sensor

Accessories

  • Rotary- and pinpoint nozzles with extensions
  • Fluid lens cleaner for concrete cutting
  • Mixing unit to add root foaming or grease dissolving additives
  • Gripper

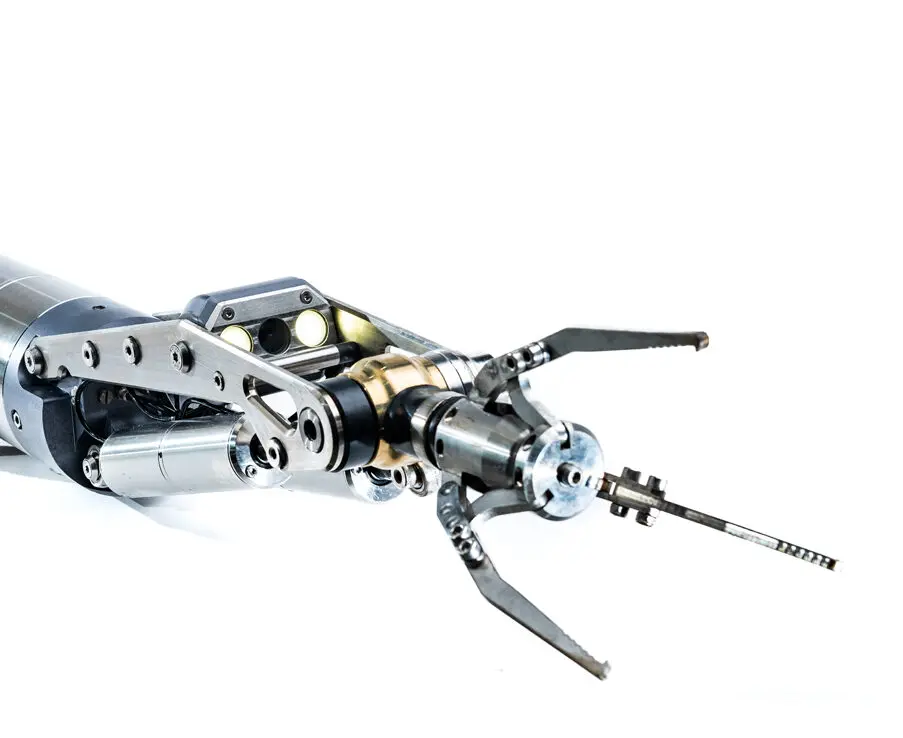

Gripper

About

Gripper

The gripper accessory is compatible with all water driven lateral reinstatement and water jet cutting jobspecific modules. It has 3 replaceable ‘fingers’ that can be closed to grab and remove solid debris and
other undesired objects from pipelines.

The closing force of the gripper’s fingers is controlled by adjusting the pressure of the high-pressure
power pack.

"Grab and remove solid debris and
other undesired objects from pipelines"

Compatible Modules

  • HA125 Lateral reinstatement
  • WJ25 Water jet cutting
  • HA195 Lateral reinstatement
  • WJ180 Water jet cutting
  • WJ200 Water jet cutting
  • HA250 Lateral reinstatement
  • WJ250 Water jet cutting

Features

  • Heavy duty materials
  • Adjustable ‘fingers’ for different sizes and closing angles
  • Adjustable closing force

Request online demonstration

Time UTC+1:

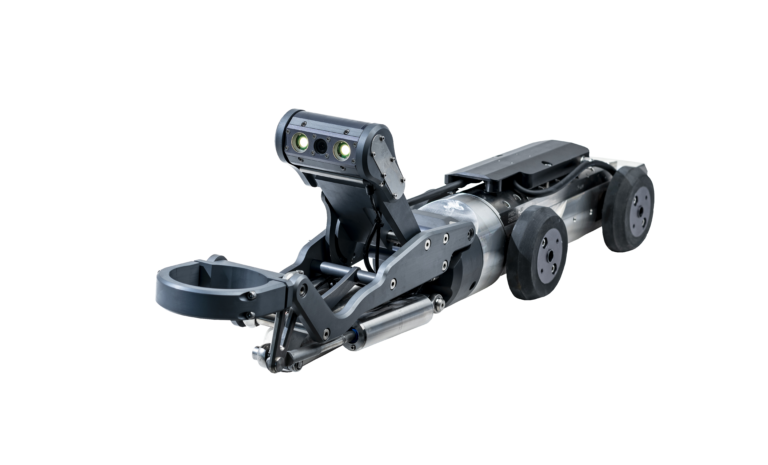

Durable stainless body

Without delicate exterior parts and with a diameter of only 100mm (4”).

Its durable and short design provides ease of deployment from tight manholes and sufficient clearance to reach far inside pipes.

Adjustable speeds

Of the electric movements (driving and rotating) allow operators to drive to the job fast. Then reduce the speed to maximize precision.

Twist-and-lock mechanism

Convert the reinstatement cutter into a UHP Water jet cutting- or CCTV inspection robot within 60 seconds. The available, purpose-build, modules widen the robot’s application range, while UHP water jet cutting provides access to a niche market with high rates and low competition.

Great visibility

A wide-angle camera with continuously adjustable LED lighting is placed directly behind the cutter and easily cleaned with the on-demand lens cleaner.

power

The powerful WM300 water hydraulic cutter motor cuts rapidly through cast iron, concrete and CIPP liner material and leaves a smooth cut.

After removing the cutter motor, an (UV) spot repair packer can be attached via a “puck” coupling.

Hydro-pneumatic actuators

The 205mm (8”) ram lift and 90° cutter motor pivot provide a very wide application scope from 150 – 500mm (“6-20”) and are realized by hydro-pneumatic actuators.

These in-house developed, linear actuators are operated with compressed air and have an enclosed hydraulic circuit to combine the strength and precision of hydraulic cylinders with the convenience and serviceability of pneumatic actuators without hydraulics inside the robot.
