Spot Repairs

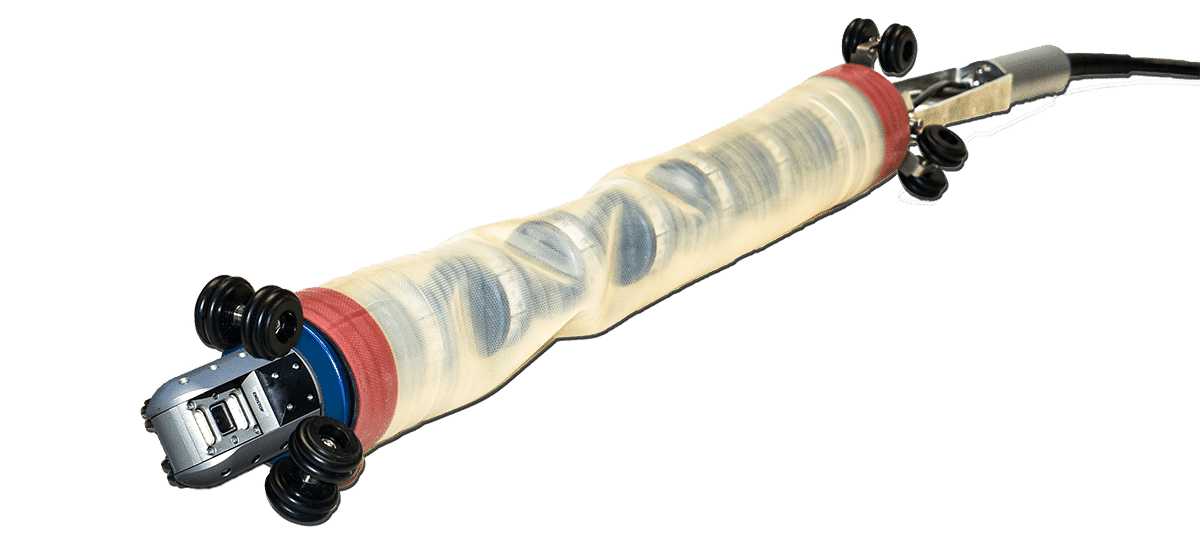

UVP125 UV-LED spot repair packer (150-400mm | 6-16")

The UVP125 packer is made for rapid renovation of longitudinal and radial cracks from inside pipes made of concrete, steel, reinforced concrete, fiber cement, cast iron or PVC. Longer damages can be rehabilitated by overlapping patches.

The UV LED light-train has a low power consumption and is suitable for pipes of differing diameters from 150 to 400mm (6-16”) by adjusting the end-discs and bladders of the packer.

The UVP125 is directly compatible with the same hybrid cable and control unit as the robot system and can be used as stand-alone packer, or in combination with a robot.

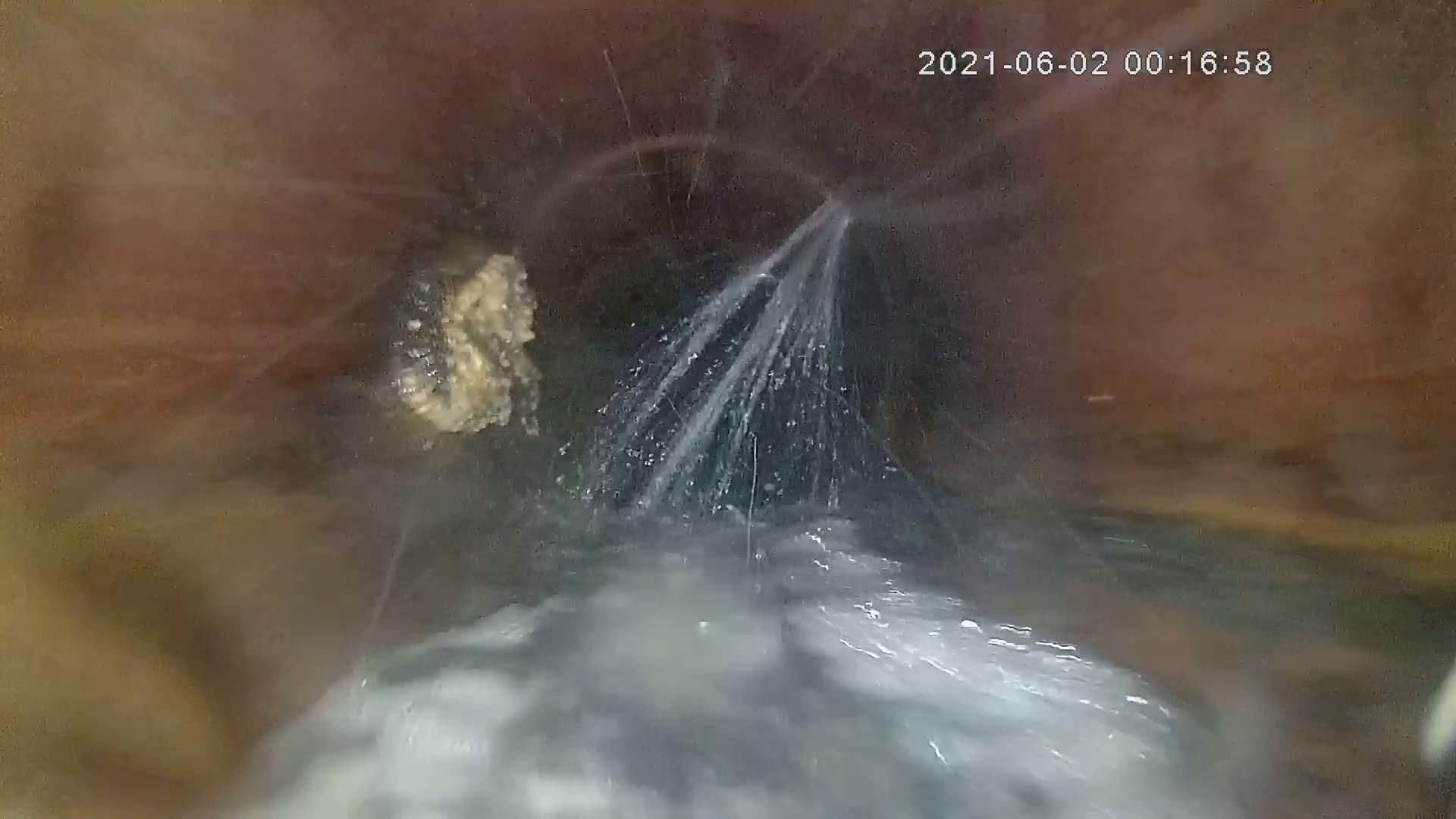

WATER INFILTRATION
Specifications

Scope of use              : 150 – 400mm (6-16”)
Curing time                : 6 – 10 Minutes
Power                        : 100-230V, 50-60Hz
Max. pressure            : 2,5bar (360psi)
Renovation lengths     : 600mm (24”)
                                : 900mm (36”)
                                : 1200mm (48”)
                                : Custom length

Feature
Accessories

“3 minutes preparation time, 8 minutes curing time”

The UV-cured FIBALITE fiberglass-reinforced patches are pre-impregnated with high stiffness, nonsilicate, resin and supplied with protection films on a convenient roll to eliminate time-consuming mixing of resins and impregnating of the carrier materials on site.
pro’s
UV PATCH DISPENSER FOR LINER MATERIAL ON A ROLL
The UV- cured liner material is supplied on 600mm (24”) wide rolls. The roll is placed in the dispenser, which is designed to easily cut the liner at the right size, remove the protection film and load it on the packer by a single person in 3 minutes.

Reinforcement                  : E-glass fibres (±70%)
Resin                               : UV curing ISO Polyester resin
Adhesion properties          : >10 MPa (to steel, shot blast) (ASTM D4541)
Adhesive modulus            : 3,8 GPa (ISO 527-2)
Thickness                        : 1,5mm/ 2,0 mm/ 2,5 mm
Adhesive tensile strength  : ≥ 90MPa (ISO 527-2)
Roll length                       : 10m (33’)
Roll width                        : 600mm (24”)
Shipping dimensions        : 750x260x270mm (29.5×10.2×10.6”)
Shipping weight               : 20kg (44LBS)
